NTC Thermistor Temperature Sensor Terminal Ring Fixed Piece Temperature Probe 10K Accuracy 1%
| Voltage Withstanding: | AC1500V | Resistor Lead: | Insulated With Tube |
| Keyword: | Temperature Sensor | Output: | Analog Or Digital |
| Measurement Range: | -50°C To 150°C | Product Name: | Factory Supply High Quality Teflon Gas Thermocouple For Refrigerator |
| Highlight: | NTC Temperature Probe 10K, Fixed Piece NTC Temperature Probe, Terminal Ring NTC Temperature Probe | ||
Product Description
NTC Thermistor Temperature Sensor Terminal Ring Fixed Piece Temperature Probe 10K Accuracy 1%
Features
1. OT and UT size can be customized according to client's requirement,manytype and size to choice,esay to install.
2. Operation temperature range:-50~150℃
3. Thermal time constant 5S
4. Water proof Grade:IP66
5. Voltage ressistace test with AC1500V 30S
6. The wire and terminal can be customized according to client's requrment
Applications
Suitable for temperature detection and protection ofvarious intelligent
small household appliances,disinfection cabinets,yogurt machines,heaters coffee machines,andnew energy vehicles.

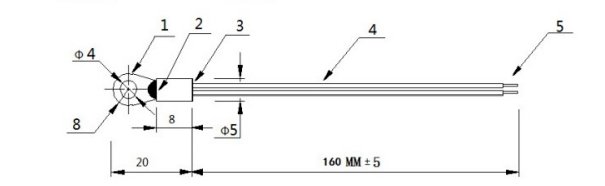

Appearance and size (mm)
Appearance specifications
| NO | Material name | Specifications / models | Quantity |
| L1 | Shell | Wiring ring5*8*20(φ4.0) | 1pcs |
| L2 | Thermistor | 10K 39501% | 1pcs |
| L3 | Resin | Black epoxy-coated resin | 0.3G |
| L4 | wire | 26#1332 Black 200℃ L160mm | 1pcs |
| L5 | Tail | Tail tin 3mm | |
| L6 |
Electrical Characteristics
| NO | project | Mark | Test condition | Minimum value | Normal value | Maximal value | Unit | ||
| 3-1 | Resistance value of 25℃ | Ta=25±0.05°CPt三0.1mw | 9.9 | 10.0 | 10.1 | kQ | |||
| 3-2 | Resistance value of 50℃ | Ta=50±0.05°℃Pt三0.1mw | 3.588 | / | kQ | ||||
| 3-3 | B value | R25750 | / | 3950 | K | ||||
| 3-4 | Thermaldissipation coefficient | Ta=25±0.5℃ | 5 | / | / | mw/℃ | |||
| 3-5 | Time constant | Ta=25±0.5℃ | / | / | 15 | sec | |||
| 3-6 | Insulation resistance | / | 500Vdc | 100 | / | / | |||
| 3-7 | Voltage ressistace test | / | 1500V AC,I=0.5mA | 60 | / | s | |||
| 3-8 | Temperature Range | / | -40 | / | +125 | ℃ | |||
