OUR Products
The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.

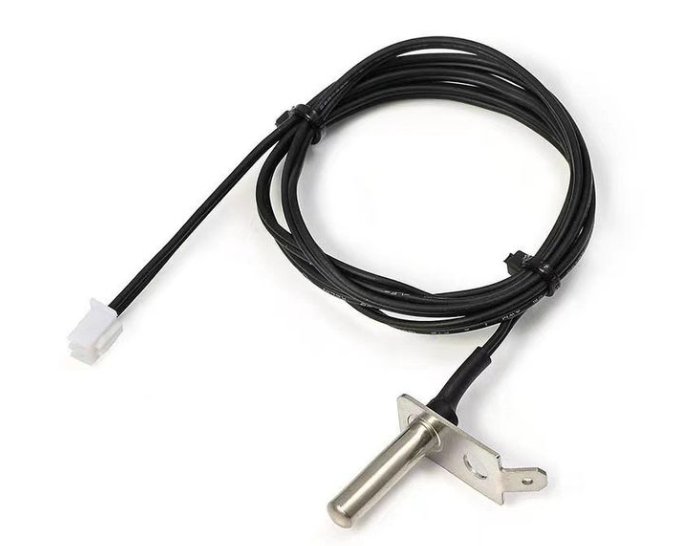

Quick Heat Sensing and Convenient Installation NTC Temperature Sensor for Air Fryer
| Shipping: | Shipping, Air, Or Express | Bvalue: | 3435/3950 |
| Sensing Way: | Resistence | Humidity Deviation: | 0~100%RH ±3% |
| Cable: | PVC&XLPE Cable | Customize: | Provide Sample Services |
| Highlight: | Quick Heat Sensing NTC Sensor, Air Fryer NTC Temperature Sensor, NTC Temperature Sensor 3435 | ||
Product Description
Quick Heat Sensing and Convenient Installation NTC Temperature Sensor for Air Fryer
Features
● Good stability and high reliability.
● Wide resistance range and high precision.
● Temperature sensor for air fryer
● Small volume, light weight, strong structure, convenient for automatic installation.
● Quick heat sensing and high sensitivity.
Applications
Suitable for temperature detection and protection ofvarious intelligent
small household appliances,disinfection cabinets,yogurt machines,heaters coffee machines,andnew energy vehicles.

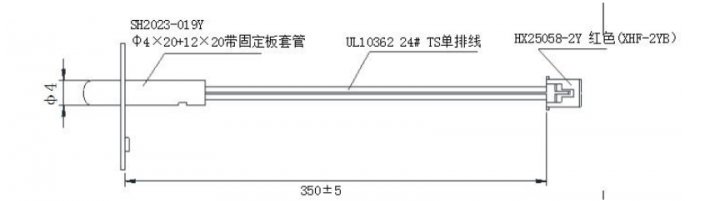

Appearance and size (mm)
Appearance specifications
| Material specifications | ||||
| No. | Name | Material specifications | Quantity | note |
| 1 | Core element | MF51 | 1 | |
| 2 | Housing | φ4×20+12×20 With retainer plate | 1 | SH2023-019Y |
| 3 | Electronic wire | UL1036224#TS | 2 | Black |
| 4 | Connect | HX25058-2Y | 1 | Red |
| 5 | Terminal core | HX25002-PT | 2 | |
