The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
NTC Thermistor Temperature Sensor Terminal Ring Fixed Piece Temperature Probe 10K Accuracy 1% For Household Appliances
| Applicable Products: | New Energy Charging Gun | Withstand Voltage: | ≥1500VAC |
| Cable Length: | Customized | Theory: | Resistance Sensor, Resistance Sensor |
| Keywords: | Temperature Sensor | B Value: | 3977K |
| Highlight: | 10K NTC Thermistor Temperature Sensor, Household NTC Thermistor Temperature Sensor, Terminal Ring NTC Sensor | ||
Product Description
NTC Thermistor Temperature Sensor Terminal Ring Fixed Piece Temperature Probe 10K Accuracy 1% For Household Appliances
Features
1. OT and UT size can be customized according to client's requirement,manytype and size to choice,esay to install.
2. Operation temperature range:-50~150℃
3. Thermal time constant 5S
4. Water proof Grade:IP66
5. Voltage ressistace test with AC1500V 30S
6. The wire and terminal can be customized according to client's requrment
Applications
Suitable for temperature detection and protection ofvarious intelligent
small household appliances,disinfection cabinets,yogurt machines,heaters coffee machines,andnew energy vehicles.

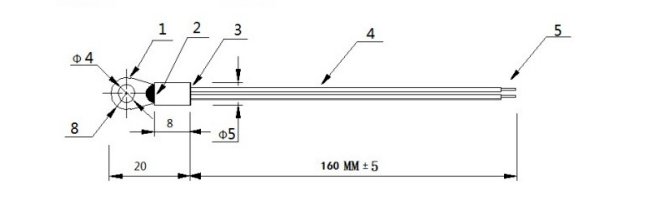

Appearance and size (mm)
Appearance specifications
| NO | Material name | Specifications / models | Quantity |
| L1 | Shell | Wiring ring5*8*20(φ4.0) | 1pcs |
| L2 | Thermistor | 10K 39501% | 1pcs |
| L3 | Resin | Black epoxy-coated resin | 0.3G |
| L4 | wire | 26#1332 Black 200℃ L160mm | 1pcs |
| L5 | Tail | Tail tin 3mm | |
| L6 |
Electrical Characteristics
| NO | project | Mark | Test condition | Minimum value | Normal value | Maximal value | Unit | ||
| 3-1 | Resistance value of 25℃ | Ta=25±0.05°CPt三0.1mw | 9.9 | 10.0 | 10.1 | kQ | |||
| 3-2 | Resistance value of 50℃ | Ta=50±0.05°℃Pt三0.1mw | 3.588 | / | kQ | ||||
| 3-3 | B value | R25750 | / | 3950 | K | ||||
| 3-4 | Thermaldissipation coefficient | Ta=25±0.5℃ | 5 | / | / | mw/℃ | |||
| 3-5 | Time constant | Ta=25±0.5℃ | / | / | 15 | sec | |||
| 3-6 | Insulation resistance | / | 500Vdc | 100 | / | / | |||
| 3-7 | Voltage ressistace test | / | 1500V AC,I=0.5mA | 60 | / | s | |||
| 3-8 | Temperature Range | / | -40 | / | +125 | ℃ | |||
