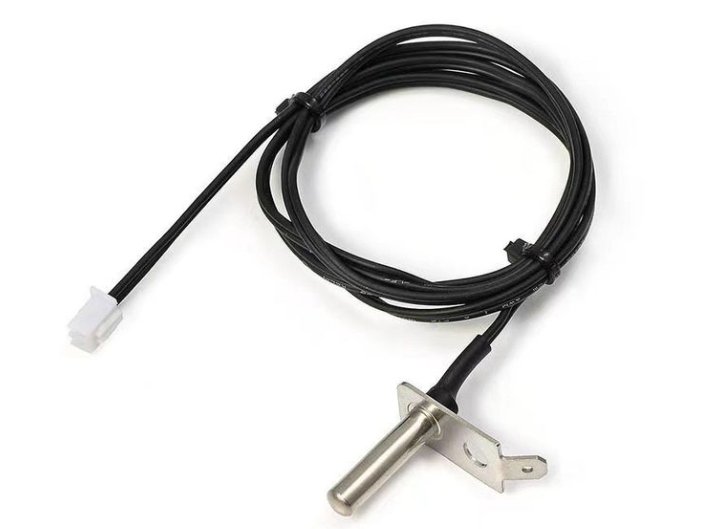

High Precision MF52A Thermistor Element NTC Temperature Sensor For Intelligent Appliances
| Resistance Value: | 1K, 5K, 10K, 50K, 100K, 15K | Customized Support: | OEM |
| Customized: | Available | Insulation Voltage: | 1500VAC, 2sec |
| Casing: | Teflon Spaghetti Sleeving | Sensor Type: | Platinum Resistance |
| Highlight: | MF52A NTC Temperature Sensor, MF52A Thermistor Element, Household NTC Temperature Sensor | ||
Product Description
High Precision MF52A Thermistor Element NTC Temperature Sensor For Intelligent Appliances
Features
● Good stability and high reliability.
● Wide resistance range and high precision.
● Temperature sensor for air fryer
● Small volume, light weight, strong structure, convenient for automatic installation.
● Quick heat sensing and high sensitivity.
Applications
Suitable for temperature detection and protection ofvarious intelligent
small household appliances,disinfection cabinets,yogurt machines,heaters coffee machines,and new energy vehicles.

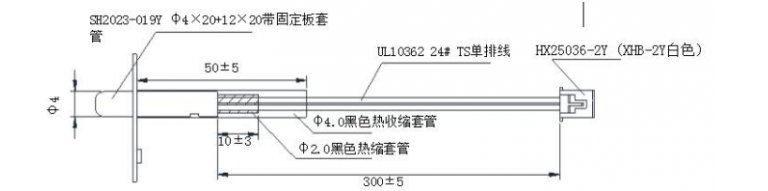

Appearance and size (mm)
Appearance specifications
| Material specifications | ||||
| No. | Name | Material specifications | Quantity | note |
| 1 | Core element | MF52A Thermistor element | 1 | |
| 2 | Metal hardware | Φ3.6*13 Plug-in | 1 | SH2023-018Y |
| 3 | Electronic wire | UL365626#TS/2FDouble Cable | 1 | Black |
| 4 | Case | φ3.0 Black Heat shrinkable sleeve | 1 | Black |
| 5 | Connector | HX25002-2Y white (XH-2Y) | 1 | white |
| 6 | ||||
