Customizable Thread Size NTC Temperature Sensor 50K 3950 Accuracy 1% For Accurate Temperature Measurement
| Features: | Fast Response | Application: | Household Appliances |
| Assembly: | Diameter Hole Locking Or Wire Fixing | Operating Temperature: | -40℃~125℃ |
| B Value Tolerance: | ±1% | Series: | Platinum Resistor |
| Tube: | Heat-shrinkable Tube | ||
| Highlight: | Customized Ntc Thermistor, Ntc Thermistor 50K , Ntc Thermistor 3950 | ||
Product Description

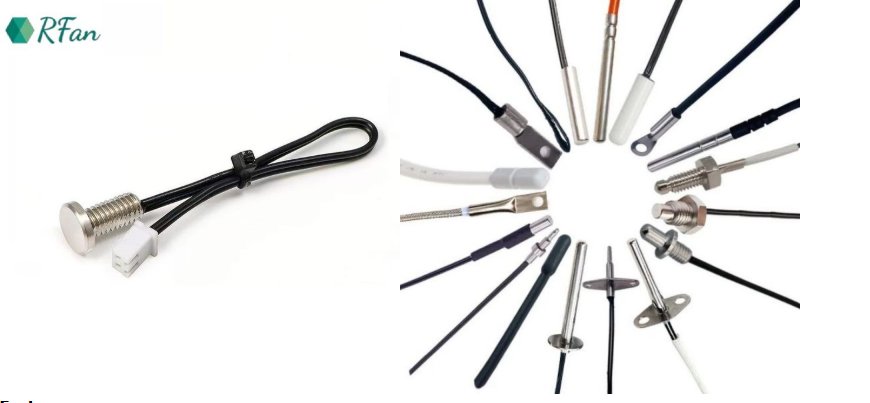

Customizable Thread Size NTC Temperature Sensor 50K 3950 Accuracy 1% For Accurate Temperature Measurement
Features
● The thread size can be customized according to client's requirement,the thread is easy to install and the fixed point temperature measurementis accurate.
● Operation temperature range:-40~150℃
● Thermal time constant ≤4S
● Water proof Grade:IP66
● Voltage ressistace test with AC1800V 30S
● The wire and terminal can becustomized according to client's requrment
Applications
Suitable for temperature measurement of smart small household appliances such as air fryers,electric kettles,electric cake pans,health pots,floor heaters,wall heaters,bath heaters,as well as car water tanks and large equipment
| Temperature sensor | Nominal resistance value | B value | Rated power | Dissipation coefficient | Thermal time constant | Operating temperature |
| R25(Ω) | 25/50℃ | (mw) | (mwC) | (S) | (℃) | |
5K3470 5K3950 10K3435 10K3950 15K3950 20K3950 50K3950 100k395 【Customizable】 | 5K 10K 15K 20K 30K 50K 100K 200K 【Customizable】 | 3435 3470 3950 4100 4200【Customizable】 | ≤50 | ≥2.0 Still in the air | ≤15 Still in the air | -40~ 200℃ |
Product customization instructions:
(1) resistance value of the product (25 ° C resistance nominal resistance value, or other)
(2) product accuracy (1% ~ 5%)
(3) product b-value coefficient
(4) wire type and length (color, length, temperature resistance requirements)
(5) wire tail specifications (dip tin, Socket Plug, special specifications)
(6) probe specifications and materials (copper-plated nickel, copper, stainless steel, ABS rubber shell)
(7) use temperature range
