The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Injection headsize can be customized according toclient's requirement,Integrated injection molding,the product has anti-corrosion,moisture-proof,and dustproof functions.
| Cable Length: | 100~2000 Mm Customized | Wire Length: | Customized To Your Demands |
| Response Time: | ≤5s | Storage Temperature: | -40℃ ~ 150℃ |
| Insulation Test: | 500VDC | Technology: | Ceramic Composition |
| Highlight: | Injection Headsize NTC Temperature Sensor, NTC Temperature Sensor 10K, NTC Temperature Sensor 3950 | ||
Product Description
Injection Headsize NTC Temperature Sensor 10K 3950 NTC Temperature Sensor For Constant Temperature Swimming Pools
Features
● Injection headsize can be customized according toclient's requirement,Integrated injection molding,the product has anti-corrosion,moisture-proof,and dustproof functions.
● Operation temperature range:-40~150℃
● Thermal time constant ≤6S
● Water proof Grade:IP66
● Voltage ressistace test with AC1800V 30S
● The wire and terminal can becustomized according to client's requrment
Applications
Suitable for ice storage,refrigerators,aquatic products,deep-water equipment,as well as indoor heating equipment such as underfloor
heating,wall heating,and constant temperature swimming pools.
| Temperature sensor | Nominal resistance value | B value | Rated power | Dissipation coefficient | Thermal time constant | Operating temperature |
| R25(Ω) | 25/50℃ | (mw) | (mwC) | (S) | (℃) | |
5K3470 5K3950 10K3435 10K3950 15K3950 20K3950 50K3950 100k395 【Customizable】 | 5K 10K 15K 20K 30K 50K 100K 200K 【Customizable】 | 3435 3470 3950 4100 4200【Customizable】 | ≤50 | ≥2.0 Still in the air | ≤15 Still in the air | -40~ 200℃ |
Product customization instructions:
(1) resistance value of the product (25 ° C resistance nominal resistance value, or other)
(2) product accuracy (1% ~ 5%)
(3) product b-value coefficient
(4) wire type and length (color, length, temperature resistance requirements)
(5) wire tail specifications (dip tin, Socket Plug, special specifications)

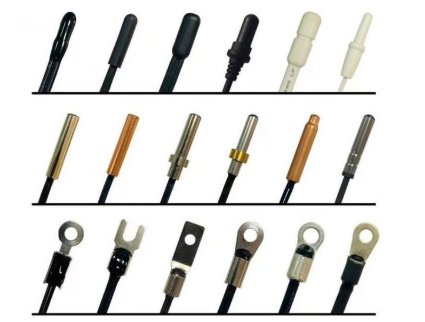

(6) probe specifications and materials (copper-plated nickel, copper, stainless steel, ABS rubber shell)
(7) use temperature range
