STB1350 Time Lag Subminiature Fuses Axial Lead Slow Blow Fuse 3.5A 250V 3x7mm
Product Description
Highlight: Time Lag Subminiature Fuses, Axial Lead Slow Blow Fuse, Subminiature Fuses 3.5A
PRODUCT
DETAILS
Product Description
STB Series 3x7mm Time-Lag Subminiature Fuses

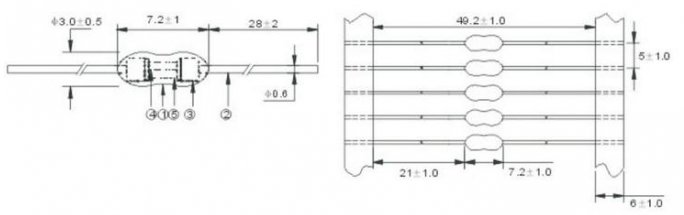

●Dimensions
●Materials
| Part Name | Material |
| Body Encapsulated | Epoxy Coated |
| Lead wire | Tin Plated Copper |
| Cap | NickelPlated Brass |
| Fuse element | Alloy wire |
| Body | Non-TransparentCeramic Tube |
●Packaging
| Packing type | Description |
Bulk | 1,000PCS per bag |
| Tape | 3,000PCS per box |
●Electrical Characteristics
| %of Ampere Rating(In) | Blowing Time |
| 100%*In | (4 hours Min) |
| 200%*In | (60 sec Max) |
●Fuse List
| Catalog Number | Am pere Rating | Voltage Rating | Breaking Capacity |
| STB0100A/B | 100mA | 250V/125V | 50A@125V/250VAC |
| STB0125A/B | 125mA | 250V/125V | 50A@125V/250VAC |
| STB0160A/B | 160mA | 250V/125V | 50A@125V/250VAC |
| STB0200A/B | 200mA | 250V/125V | 50A@125V/250VAC |
| STB0250A/B | 250mA | 250V/125V | 50A@125V/250VAC |
| STB0300A/B | 300mA | 250V/125V | 50A@125V/250VAC |
| STB0315A/B | 315mA | 250V/125V | 50A@125V/250VAC |
| STB0350A/B | 350mA | 250V/125V | 50A@125V/250VAC |
| STB0400A/B | 400mA | 250V/125V | 50A@125V/250VAC |
| STB0500A/B | 500mA | 250V/125V | 50A@125V/250VAC |
| STB0630A/B | 630mA | 250V/125V | 50A@125V/250VAC |
| STB0750A/B | 750mA | 250V/125V | 50A@125V/250VAC |
| STB0800A/B | 800mA | 250V/125V | 50A@125V/250VAC |
| STB1100A/B | 1A | 250V/125V | 50A@125V/250VAC |
| STB1125A/B | 1.25A | 250V/125V | 50A@125V/250VAC |
| STB1150A/B | 1.5A | 250V/125V | 50A@125V/250VAC |
| STB1160A/B | 1.6A | 250V/125V | 50A@125V/250VAC |
| STB1200A/B | 2A | 250V/125V | 50A@125V/250VAC |
| STB1250A/B | 2.5A | 250V/125V | 50A@125V/250VAC |
| STB1300A/B | 3A | 250V/125V | 50A@125V/250VAC |
| STB1315A/B | 3.15A | 250V/125V | 50A@125V/250VAC |
| STB1350A/B | 3.5A | 250V/125V | 50A@125V/250VAC |
| STB1400A/B | 4A | 250V/125V | 50A@125V/250VAC |
| STB1500A/B | 5A | 250V/125V | 50A@125V/250VAC |
| STB1630A/B | 6.3A | 250V/125V | 50A@125V/250VAC |
