RFP1100 Axial Lead Time Lag Miniature Cartridge Fuse Slow Blow 1A 350V 4x11mm
Product Description
Highlight: Miniature Cartridge Fuse 350V, Miniature Cartridge Fuse 4x11mm, Miniature Cartridge Fuse 1A
PRODUCT
DETAILS
Product Description
RFP1100 1A 350V 4x11mm Time-Lag Subminiature Fuses Slow Blow Fuse Time Delay Fuse Element Axial Lead Fuse
RFP Series 4x11mm Fast-Acting Subminiature Fuses

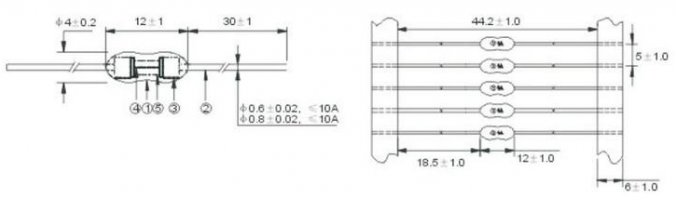

●Dimensions
●Materials
| Part Name | Material |
| Body Encapsulated | Epoxy Coated |
| Leadwire | Tin Plated Copper |
| Cap | Nickel Plated Brass |
| Fuse element | Alloywire |
| Body | Non-Transparent Ceramic Tube |
●Packaging
| Packing type | Description |
Bulk | 1.000PCS per bag |
| Tape | 2,000PCS per box |
●Electrical Characteristics
| %of Ampere Rating(In) | Blowing Time |
| 100%*In | (4 hours Min) |
| 200%*In | (60 sec Max) |
●Fuse List
| Catalog Number | Ampere Rating | Voltage Rating | Breaking Capacity |
| RFP0100 | 100mA | 350V | 50A@350VAC |
| RFP0125 | 125mA | 350V | 50A@350VAC |
| RFP0160 | 160mA | 350V | 50A@350VAC |
| RFP0200 | 200mA | 350V | 50A@350VAC |
| RFP0250 | 250mA | 350V | 50A@350VAC |
| RFP0300 | 300mA | 350V | 50A@350VAC |
| RFP0315 | 315mA | 350V | 50A@350VAC |
| RFP0350 | 350mA | 350V | 50A@350VAC |
| RFP0375 | 375mA | 350V | 50A@350VAC |
| RFP0400 | 400mA | 350V | 50A@350VAC |
| RFP0500 | 500mA | 350V | 50A@350VAC |
| RFP0600 | 600mA | 350V | 50A@350VAC |
| RFP0630 | 630mA | 350V | 50A@350VAC |
| RFP0700 | 700mA | 350V | 50A@350VAC |
| RFP0750 | 750mA | 350V | 50A@350VAC |
| RFP0800 | 800mA | 350V | 50A@350VAC |
| RFP1100 | 1A | 350V | 50A@350VAC |
| RFP1125 | 1.25A | 350V | 50A@350VAC |
| RFP1150 | 1.5A | 350V | 50A@350VAC |
| RFP1160 | 1.6A | 350V | 50A@350VAC |
| RFP1200 | 2A | 350V | 50A@350VAC |
| RFP1250 | 2.5A | 350V | 50A@350VAC |
| RFP1300 | 3A | 350V | 50A@350VAC |
| RFP1315 | 3.15A | 350V | 50A@350VAC |
| RFP1350 | 3.5A | 350V | 50A@350VAC |
| RFP1400 | 4A | 350V | 50A@350VAC |
| RFP1500 | 5A | 350V | 50A@350VAC |
| RFP1600 | 6A | 350V | 50A@350VAC |
| RFP1630 | 6.3A | 350V | 50A@350VAC |
| RFP1700 | 7A | 350V | 50A@350VAC |
| RFP1800 | 8A | 350V | 50A@350VAC |
| RFP1900 | 9A | 350V | 50A@350VAC |
| RFP2100 | 10A | 350y | 50A@350VAC |
| RFP2120 | 12A | 350V | 50A@350VAC |
| RFP2150 | 15A | 350V | 50A@350VAC |
