Miniature Cartridge Fuse
MFC2120 Glass Tube Miniature Cartridge Fuse Fast Acting 12A 250V/150V 6*32mm
Product Description
MFC2120 12A 250V/150V 6*32mm Fast-Acting Glass Tube Fuse Disposable Fuse
PRODUCT
DETAILS
Detail Information
| Vac: | 125V/250V | Agency: | UL,CUL,KC,VDE,CQC |
| Operating Temperature Range: | -55°C To +125°C | Blow Type: | Fast-acting |
| Fuse Style: | Cartridge | Lead Wire: | Tin Plated Copper |
| Operating Temp Range: | -55℃～+125℃ | Halogen Free: | Yes |
| Highlight: | Miniature Cartridge Fuse 6x32mm, 12A Miniature Cartridge Fuse, 250V Fast Acting Fuse | ||
Product Description

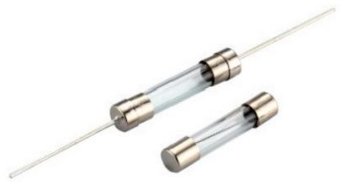

MFC Series 6*32mm Fast-Acting Glass Tube Fuse
●Materials
| Part Name | Material |
| Cap | Nickel Plated Brass |
| Body | Glass Tube |
| Fuseelement | Alloy |
| Lead wire | Tin Plated Copper |
●Packaging
| Packing type | Description |
| Bulk | 200PCS per bag |
| Box | 4,000PCS per box |
●Dimensions
●Electrical Characteristics
| %of Ampere Rating(In) | Blowing Time |
| 100%*In | (4 hours Min) |
| 135%*In | (1 hour Max) |
| 200%*In | (5 sec Max) |
●Fuse List
| Catalog Number | Ampere Rating | Voltage Rating | Breaking Capacity | Melting Integral(As |
| MFC0100A/B | 100mA | 250V/125V |
0000A@125VAC (100mA~10A); 35A@250VAC (100mA~1A);
100A@250VAC (1.25A~3.5A);
200A@250VAC (4A~10A). | 0.003 |
| MFC0160A/B | 160mA | 250V/125V | 0.008 | |
| MFC0200A/B | 200mA | 250V/125V | 0.02 | |
| MFC0250A/B | 250mA | 250V/125V | 0.026 | |
| MFC0300A/B | 300mA | 250V/125V | 0.047 | |
| MFC0315A/B | 315mA | 250V/125V | 0.055 | |
| MFC0350A/B | 350mA | 250V/125V | 0.072 | |
| MFC0400A/B | 400mA | 250V/125V | 0.10 | |
| MFC0500A/B | 500mA | 250V/125V | 0.16 | |
| MFC0630A/B | 630mA | 250V/125V | 0.28 | |
| MFC0750A/B | 750mA | 250V/125V | 0.49 | |
| MFC0800A/B | 800mA | 250V/125V | 0.60 | |
| MFC1100A/B | 1A | 250V/125V | 0.8 | |
| MFC1125A/B | 1.25A | 250V/125V | 1.6 | |
| MFC1150A/B | 1.5A | 250V/125V | 2.5 | |
| MFC1160A/B | 1.6A | 250V/125V | 3.2 | |
| MFC1200A/B | 2A | 250V/125V | 5.6 | |
| MFC1250A/B | 2.5A | 250V/125V | 7.6 | |
| MFC1300A/B | 3A | 250V/125V | 14 | |
| MFC1315A/B | 3.15A | 250V/125V | 19 | |
| MFC1350A/B | 3.5A | 250V/125V | 20 | |
| MFC1400A/B | 4A | 250V/125V | 25 | |
| MFC1500A/B | 5A | 250V/125V | 42 | |
| MFC1600A/B | 6A | 250V/125V | 80 | |
| MFC1630A/B | 6.3A | 250V/125V | 96 | |
| MFC1800A/B | 8A | 250V/125V | 200 | |
| MFC2100A/B | 10A | 250V/125V | 320 | |
| MFC2120A/B | 12A | 250V/125V | 470 | |
| MFC2150A/B | 15A | 250V/125V | 650 | |
| MFC2200A/B | 20A | 250V/125V | 870 | |
| MFC2250A/B | 25A | 250V/125V | 1320 | |
| MFC2300A/B | 30A | 250V/125V | 1820 |
