Miniature Cartridge Fuse

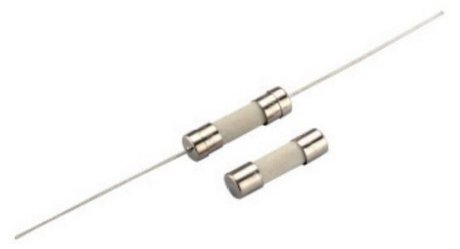

BFC1100A Fast Acting Ceramic Tube Fuse Disposable 5*20mm 1A 250V/125V
Product Description
BFC1100A 5*20mm 1A 250V/125V Fast-Acting Ceramic Tube Fuse Disposable Fuse
PRODUCT
DETAILS
Detail Information
| Vac: | 125V/250V | Agency: | UL,CUL,KC,VDE,CQC |
| Operating Temperature Range: | -55°C To +125°C | Blow Type: | Fast-acting |
| Fuse Style: | Cartridge | Lead Wire: | Tin Plated Copper |
| Operating Temp Range: | -55℃～+125℃ | Halogen Free: | Yes |
| Highlight: | Fast Acting Ceramic Tube Fuse，BFC1100A Ceramic Tube Fuse，Ceramic Tube Fuse 1A | ||
Product Description
BFC Series 5*20mm Fast-Acting Ceramic Tube Fuse
●Materials
| Part NameMaterialCapNickel Plated BrassBodyNon-Transparent Ceramic TubeFuse elementAlloyLead wireTin Plated Copper |
●Packaging
| Packing type | Description |
Bulk | 500PCS per bag |
| Box | 5,000PCS per box |
●Dimensions
UL248-1/14 %of Ampere Rating(In) | Blowing Time |
| 100%*In | (4 hours Min) |
| 135%*In | (1 hour Max) |
| 200%*In | (5 sec Max) |
IEC 60127 %of Ampere Rating(In) | Blowing Time |
| 210%*In | (30 min Max) |
| 275%*In | (10 ms~2 s) |
●Fuse List
| Catalog Number | Ampere Rating | Voltage Rating | Max Voltage Drop(mv) | 江Melting Integral(A'S) |
| BFC0100A/B | 100mA | 250V/125V | 3500 | 0.0005 |
| BFC0125A/B | 125mA | 250V/125V | 2000 | 0.003 |
| BFC0160A/B | 160mA | 250V/125V | 2000 | 0.01 |
| BFC0200A/B | 200mA | 250V/125V | 1700 | 0.04 |
| BFC0250A/B | 250mA | 250V/125V | 1400 | 0.06 |
| BFC0315A/B | 315mA | 250V/125V | 1300 | 0.10 |
| BFC0400A/B | 400mA | 250V/125V | 1200 | 0.20 |
| BFC0500A/B | 500mA | 250V/125V | 1100 | 0.35 |
| BFC0630A/B | 630mA | 250V/125V | 650 | 0.50 |
| BFC0800A/B | 800mA | 250V/125V | 240 | 1.3 |
| BFC1100A/B | 1A | 250V/125V | 200 | 1.6 |
| BFC1125A/B | 1.25A | 250V/125V | 200 | 2.4 |
| BFC1160A/B | 1.6A | 250V/125V | 190 | 4.6 |
| BFC1200A/B | 2A | 250V/125V | 170 | 7.9 |
| BFC1250A/B | 2.5A | 250V/125V | 170 | 12 |
| BFC1315A/B | 3.15A | 250V/125V | 150 | 22 |
| BFC1400A/B | 4A | 250V/125V | 130 | 29 |
| BFC1500A/B | 5A | 250V/125V | 130 | 78 |
| BFC1630A/B | 6.3A | 250V/125V | 130 | 97 |
| BFC1800AB | 8A | 250V/125V | 100 | 290 |
| BFC2100A/B | 10A | 250V/125V | 100 | 430 |
| BFC2125A/B | 12.5A | 250V/125V | 96 | 560 |
| BFC2160A/B | 16A | 250V/125V | 90 | 670 |
| BFC2200A/B | 20A | 250V/125V | 82 | 700 |
| BFC2250A/B | 25A | 250V/125V | 75 | 850 |
| BFC2300A/B | 30A | 250V/125V | 72 | 1000 |
