NTS1125A 300V 1.25A Mini Radial Lead Fuse Quick Acting Square Plastic Sealed
Product Description
8x4x7mm NTS1125A 300V 1.25A Time-Lag Radial Lead Micro Fuse Quick Acting Fuse Square Plastic Sealed Fuse
8x4x7mm NTS Series Time-Lag Radial Lead Micro Fuse
PRODUCT
DETAILS
| Features: | High Interrupting Rating, Low Watt Loss, Time Delay | Material: | Fiber Tube |
| Application: | Photovoltaic Applications | Mount: | Stud Mount |
| Filler: | Silica | Applications: | Industrial Equipment, Motor Control Centers, Power Distribution Systems |
| Highlight: | Mini Radial Lead Fuse,300V Radial Lead Fuse,1.25A Quick Acting Fuse | ||
Product Description
8x4x7mm NTS1125A 300V 1.25A Time-Lag Radial Lead Micro Fuse Quick Acting Fuse Square Plastic Sealed Fuse
8x4x7mm NTS Series Time-Lag Radial Lead Micro Fuse
●Materials
| Part Name | Material |
| Cap&Base | Black/Brown Thermoplastic,UL94 V-0 |
| Lead wire | Copper,Tin-plated |
●Packaging
| Packing type | Description |
Bulk | 1,000PCS per bag |
| Tape | 1,000PCS per box |

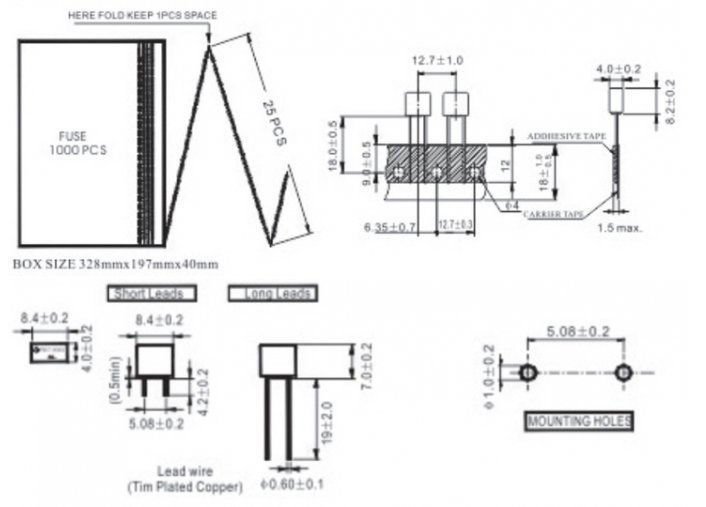

●Dimensions
●Electrical Characteristics
| %of Ampere Rating(In) | Blowing Time |
| 150%*In | (60 min Minimum) |
| 210%*In | (2 min Max) |
| 275%*In | (400 ms~10 s) |
| 400%*In | (150ms~3 s) |
| 1000%*In | (20 ms~150 ms) |
●Fuse List
| Catalog Number | Ampere Rating | Voltage Rating | Max Voltage Drop(mv) | TMelting Integral(As |
| NTS0050A | 50mA | 300V | 655 | 0.04 |
| NTS0100A | 100mA | 300y | 410 | 0.31 |
| NTS0125A | 125mA | 300V | 323 | 0.42 |
| NTS0160A | 160mA | 300V | 296 | 0.57 |
| NTS0200A | 200mA | 300V | 272 | 0.71 |
| NTS0250A | 250mA | 300V | 251 | 0.91 |
| NTS0315A | 315mA | 300V | 237 | 0.63 |
| NTS0400A | 400mA | 300V | 211 | 1.22 |
| NTS0500A | 500mA | 300V | 202 | 2.34 |
| NTS0630A | 630mA | 300V | 191 | 2.88 |
| NTS0800A | 800mA | 300V | 172 | 3.92 |
| NTS1100A | 1A | 300V | 200 | 8.77 |
| NTS1125A | 1.25A | 300V | 200 | 10.22 |
| NTS1160A | 1.6A | 300V | 190 | 14.88 |
| NTS1200A | 2A | 300V | 170 | 29.90 |
| NTS1250A | 2.5A | 300V | 170 | 47 |
| NTS1315A | 3.15A | 300V | 150 | 62 |
| NTS1400A | 4A | 300V | 130 | 104 |
| NTS1500A | 5A | 300V | 130 | 195 |
| NTS1630A | 6.3A | 300V | 130 | 378 |
| NTS1800A | 8A | 300V | 100 | 521 |
| NTS2100A | 10A | 300V | 100 | 640 |
