Industrial Power Fuses

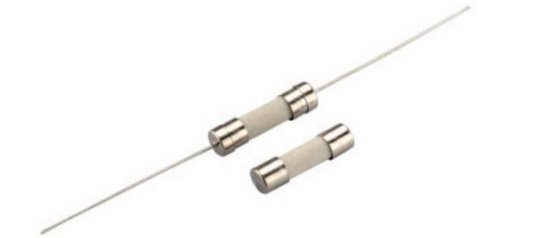

BMF1315 Fast Acting Ceramic Tube Fuse Disposable 3.15A 250V/125V 6.35*32mm
Product Description
BMF1315 3.15A 250V/125V 6.35*32mm Fast-Acting Ceramic Tube Fuse Disposable Fuse
BMF Series 6.35*32mm Fast-Acting Ceramic Tube Fuse
PRODUCT
DETAILS
| Vac: | 125V/250V | Agency: | UL,CUL,KC,VDE,CQC |
| Operating Temperature Range: | -55°C To +125°C | Blow Type: | Fast-acting |
| Fuse Style: | Cartridge | Lead Wire: | Tin Plated Copper |
| Operating Temp Range: | -55℃～+125℃ | Halogen Free: | Yes |
| Highlight: | Disposable Ceramic Tube Fuse,Ceramic Tube Fuse 3.15A,125V Ceramic Tube Fuse | ||
Product Description
BMF1315 3.15A 250V/125V 6.35*32mm Fast-Acting Ceramic Tube Fuse Disposable Fuse
BMF Series 6.35*32mm Fast-Acting Ceramic Tube Fuse
●Materials
| Part Name | Material |
| Cap | Nickel Plated Brass |
| Body | Non-Transparent Ceramic Tube |
| Fuse element | Alloy |
| Lead wire | Tin Plated Copper |
●Packaging
| Packing type | Description |
| Bulk | 200PCS per bag |
| Box | 4,000PCS per box |
●Dimensions
●Electrical Characteristics
| %of Ampere Rating(In) | Blowing Time |
| 100%*In | (4 hours Min) |
| 135%*In | (1 hour Max) |
| 200%*In | (5 sec Max) |
●Fuse List
| Catalog Number | Ampere Rating | Voltage Rating | Breaking Capacity |
| BMF0100A/B | 100mA | 250V/125V |
35A@250VAC (100mA~1A);
100A@250VAC (1.25A~3.5A);
200A@250VAC (4A~10A)
750A@250VAC (12A~30A).
1000A@250VAC (32A~50A)
300V
500V
600V
750V
1000V |
| BMF0160A/B | 160mA | 250V/125V | |
| BMF0200A/B | 200mA | 250V/125V | |
| BMF0250AVB | 250mA | 250V/125V | |
| BMF0300A/B | 300mA | 250V/125V | |
| BMF0315A/B | 315mA | 250V/125V | |
| BMF0350A/B | 350mA | 250V/125V | |
| BMF0400A/B | 400mA | 250V/125V | |
| BMF0500A/B | 500mA | 250V/125V | |
| BMF0630A/B | 630mA | 250V/125V | |
| BMF0750A/B | 750mA | 250V/125V | |
| BMF0800A/B | 800mA | 250V/125V | |
| BMF1100A/B | 1A | 250V/125V | |
| BMF1125A/B | 1.25A | 250V/125V | |
| BMF1150A/B | 1.5A | 250V/125V | |
| BMF1160A/B | 1.6A | 250V/125V | |
| BMF1200A/B | 2A | 250V/125V | |
| BMF1250A/B | 2.5A | 250V/125V | |
| BMF1300AVB | 3A | 250V/125V | |
| BMF1315A/B | 3.15A | 250V/125V | |
| BMF1350A/B | 3.5A | 250V/125V | |
| BMF1400A/B | 4A | 250V/125V | |
| BMF1500A/B | 5A | 250V/125V | |
| BMF1600A/B | 6A | 250V/125V | |
| BMF1630A/B | 6.3A | 250V/125V | |
| BMF1800A/B | 8A | 250V/125V | |
| BMF2100AVB | 10A | 250V/125V | |
| BMF2120A/B | 12A | 250V/125V | |
| BMF2150A/B | 15A | 250V/125V | |
| BMF2200A/B | 20A | 250V/125V | |
| BMF2250A/B | 25A | 250V/125V | |
| BMF2300A/B | 30A | 250V/125V | |
| BMF2400A/B | 40A | 250V/125V | |
| BMF2500A/B | 50A | 250V/125V |
