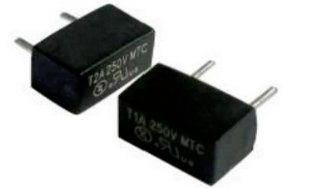

MFC1200A Radial Lead Micro Quick Acting Fuse 8x4x5mm 250V 2A
Product Description
8x4x5mm MFC1200A 250V 2A Fast-Acting Radial Lead Micro Fuse Quick Acting Fuse
8x4x5mm MFC Series Fast-Acting Radial Lead Micro Fuse
PRODUCT
DETAILS
| Fuse Element: | Silver Or Copper | Knife Material: | Brass Or Red Copper |
| Packing: | Bulk | Keyword: | Charging Pile Fuse |
| Condition: | Fast Acting | Rating Current: | 250A |
| Highlight: | Micro Quick Acting Fuse,Quick Acting Fuse 8x4x5mm,Quick Acting Fuse 250V | ||
Product Description
8x4x5mm MFC1200A 250V 2A Fast-Acting Radial Lead Micro Fuse Quick Acting Fuse
8x4x5mm MFC Series Fast-Acting Radial Lead Micro Fuse
●Materials
| Part Name | Material |
| Cap&Base | Black/Brown Thermoplastic,UL94 V-0 |
| Lead wire | Copper,Tin-plated |
●Packaging
| Packing type | Description |
Bulk | 1,000PCS per bag |
| Tape | 1,000PCS per box |

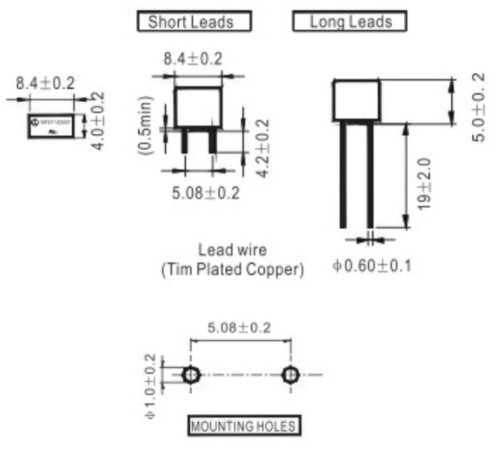

●Dimensions
●Electrical Characteristics
| %of Ampere Rating(In) | Blowing Time |
| 150%*In | (60 min Minimum) |
| 210%*In | (30 min Max) |
| 275%*In | (10 ms~3 s) |
| 400%*In | (3ms~300ms) |
| 1000%*In | (20 ms Max) |
●Fuse List
| Catalog Number | Ampere Rating | Voltage Rating | Max Voltage Drop(mv) | IMelting Integral(A.S) |
| MFC0050A | 50mA | 250/300V | 4200 | 0.0009 |
| MFC0100A | 100mA | 250/300V | 3500 | 0.002 |
| MFC0125A | 125mA | 250/300V | 2000 | 0.008 |
| MFC0160A | 160mA | 250/300V | 2000 | 0.012 |
| MFC0200A | 200mA | 250/300V | 1700 | 0.04 |
| MFC0250A | 250mA | 250/300V | 1400 | 0.06 |
| MFC0315A | 315mA | 250/300V | 1300 | 0.10 |
| MFC0400A | 400mA | 250/300V | 1200 | 0.20 |
| MFC0500A | 500mA | 250/300V | 1100 | 0.35 |
| MFC0630A | 630mA | 250/300V | 650 | 0.50 |
| MFC0800A | 800mA | 250/300V | 240 | 1.3 |
| MFC1100A | 1A | 250/300V | 200 | 1.6 |
| MFC1125A | 1.25A | 250/300V | 200 | 2.4 |
| MFC1160A | 1.6A | 250/300V | 190 | 4.6 |
| MFC1200A | 2A | 250/300V | 170 | 7.9 |
| MFC1250A | 2.5A | 250/300V | 170 | 12 |
| MFC1315A | 3.15A | 250/300V | 150 | 22 |
| MFC1400A | 4A | 250/300V | 130 | 29 |
| MFC1500A | 5A | 250/300V | 130 | 78 |
| MFC1630A | 6.3A | 250/300V | 130 | 97 |
| MFC1800A | 8A | 250/300V | 100 | 290 |
| MFC2100A | 10A | 250/300V | 100 | 430 |
