LR Series

banner

OUR Products

The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.

PRODUCT DETAILS

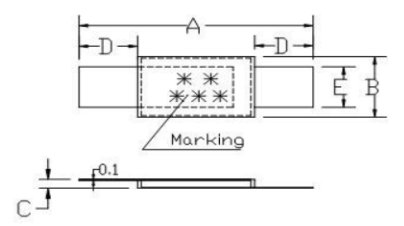

★ Product Dimensions



Model

A

B

C

D

E

Min

Max

Min

Max

Min

Max

Min

Max

Min

Max

LR120

19.0

23.0

4.6

5.5

0.4

1.0

5.0

7.5

3.8

4.2

LR200

20.9

23.1

4.6

5.5

0.4

1.0

3.5

6.0

3.8

4.2

LR260

20.9

23.1

4.6

5.5

0.4

1.0

3.5

6.0

3.8

4.2

LR300

24.0

27.5

6.9

7.5

0.4

1.0

4.0

7.5

4.8

5.2

LR350

24.0

27.5

6.9

7.5

0.4

1.0

4.0

7.5

4.8

5.2

LR380

24.0

27.5

6.9

7.5

0.4

1.0

4.0

7.5

4.8

5.2

LR420

24.0

27.5

9.8

10.5

0.4

1.0

4.0

7.5

4.8

5.2

LR450

24.0

27.5

9.8

10.5

0.4

1.0

4.0

7.5

4.8

5.2

LR550

24.0

27.5

9.8

10.5

0.4

1.0

4.0

7.5

4.8

5.2

LR600

27.1

29.1

13.9

14.5

0.4

1.0

4.1

5.5

5.9

6.6

LR730

27.1

29.1

13.9

14.5

0.4

1.0

4.1

5.5

5.9

6.6

LR900

45.4

47.6

7.9

8.5

0.4

1.0

4.6

6.2

5.9

6.1

LR1410

58.0

60.0

13.4

14.0

0.4

1.0

4.2

5.8

5.9

6.1


★ Electrical Characteristic

Model

Ihold

Itrip

Vmax

Imax

Pd

Itrip

Ttrip

Rmin

Rmax

R1max

(A)

(A)

(V)

(A)

(W)

Current(A)

Time(S)

(Ω)

(Ω)

(Ω)

LR120

1.20

2.70

16

100

1.60

10.0

5.0

60

120

240

LR200

2.00

4.40

16

100

1.60

10.0

5.0

20

40

80

LR210

2.10

4.40

16

100

1.60

10.5

5.0

20

35

70

LR260

2.60

5.20

16

100

1.60

13.0

5.0

15

30

60

LR300

3.00

6.30

24

100

2.40

15.0

5.0

15

31

62

LR350

3.50

7.00

24

100

2.40

17.5

5.0

17

31

62

LR380

3.80

7.60

24

100

2.40

19.0

5.0

13

22

44

LR420

4.20

8.30

24

100

2.00

21.0

5.0

12

24

48

LR450

4.50

9.00

20

100

2.00

22.5

5.0

11

20

40

LR550

5.50

10.50

20

100

2.00

27.5

5.0

9

16

32

LR600

6.00

11.70

20

100

2.80

30.0

5.0

7

14

28

LR730

7.30

14.10

20

100

3.30

36.5

5.0

5

12

24

LR900

9.00

16.70

20

100

3.80

45.0

5.0

6

10

20

LR1410

14.10

26.20

20

100

6.00

70.5

5.0

3

5

10


★ Thermal Derating Chart-IH( A)

Model

Maximum ambient operating temperatures( ℃ )

-40

-20

0

20

40

50

60

70

80

85

LR120

1.9

1.7

1.5

1.2

1. 0

0.9

0.8

0.6

0.5

0.4

LR200

3.1

2.8

2.5

2.0

1. 7

1.5

1.4

1.2

1.0

0.9

LR260

3.8

3.4

3.1

2.6

2.2

2.0

1.9

1.7

1.4

1.3

LR300

5.1

4.4

3.7

3.0

2.3

1.9

1.6

1.2

0.9

0.7

LR350

5.3

4.8

4.3

3.5

3.0

2.7

2.5

2.1

1.8

1.7

LR380

5.4

4.9

4.4

3.8

3.3

3.0

2.8

2.5

2.3

2.1

LR420

6.3

5.7

5.1

4.2

3.6

3.3

3.0

2.6

2.4

2.2

LR450

6.5

5.8

5.3

4.5

3.9

3.6

3.3

2.9

2.6

2.4

LR550

7.6

6.9

6.2

5..5

4.7

4.3

4.0

3.6

3.2

3.0

LR600

8.7

7.8

7.1

6.0

5.2

4.7

4.4

3.9

3.4

3.2

LR730

10.5

9.5

8.6

7.3

6.3

5.7

5.4

4.7

4.2

4.0

LR900

12.7

11.4

10

9.0

7.5

6.8

6.2

5.5

4.9

4.5

LR1410

19.9

17.8

15.7

14.1

11.8

10.8

9.7

8.7

7.7

7.2


★ Test Procedures And Requirements


Test

Test Conditions

Accept/Reject Criteria

Resistance

In still air @ 25℃

Rmin≤R≤Rmax

Time to Trip

Specified current,Vmax,25℃

Tmaximum Time to Trip

Hold Current

30min,at IH

No trip

Trip Cycle Life

Vmax,Imax,1000cycles

No arcing or burning

Trip Endurance

Vmax,24hours

No arcing or burning



★ Physical Characteristics and Environmental Specifications


Physical Characteristics

Leadmaterial

0.125mm nominal hickness,quarter-hardnickel

Tape material

Polyester



Environmental Specifications

Test

Conditions

ResistanceChange

Passiveaging

70℃,1000hours

±10%

Humidityaging

85℃/85%RH.7days

±5%

Vibration

IL-STD-883C,TestConditionA

Nochage


 ★ Electrical Specifications

 Ihold=Hold current: maximum current device will not trip in 25℃ still air.

 Itrip= Trip current: minimum current device will always trip in 25℃ still air.

 Vmax=Maximum voltage device can withstand without damage at rated current(Imax).

 Imax=Maximum fault current device can withstand without damage at rated voltage(vmax).

 Pdmax= Power dissipated when device is in the tripped state in 25℃ still air environment at rated voltage.

 Max Time-to-trip=Maximum time to trip(s) at assigned current.

 Rmin=Minimum device resistance prior to tripping at 25℃.

 Rmax=Maximum device resistance prior to tripping at 25℃.

 R1max=Maximum device resistance one hour after it is tripped at 25℃
