GSMD0603 Series Surface Mount PTC Device

OUR Products

The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.

Product Description

Feature:

◉ Size 0.06*0.03 inch / 1.5*0.8 mm

◉ RoHS compliant, lead-free and halogen-free

◉ Fast response to fault current

◉ Compatible with high temperature solders

◉ Low resistance

◉ Low profile

PRODUCT DETAILS

Applications:

◉ Computer / Mobile phones / Multimedia / Broadband

◉ Automotive / Industrial controls / Telephony

◉ Game machines / Portable electronics / Battery

Electrical Characteristics（25℃)

Part Number	Ihold	Itrip	Vmax	Imax	Pd typ	Time to trip		Rmin	R1max
Part Number	(A)	(A)	(Vdc)	(A)	(W)	(A)	(Sec)	(Ω)	(Ω)
GSMD0603-001-30V	0.01	0.03	30	20	0.5	0.20	1.00	15.00	100.0
GSMD0603-001-60V	0.01	0.03	60	20	0.5	0.20	1.00	15.00	100.0
GSMD0603-001-72V	0.01	0.03	72	10	0.5	0.20	1.00	15.00	100.0
GSMD0603-002-30V	0.02	0.06	30	20	0.5	0.20	1.00	12.00	70.0
GSMD0603-002-60V	0.02	0.06	60	20	0.5	0.20	1.00	12.00	70.0
GSMD0603-003-30V	0.03	0.09	30	20	0.5	0.20	1.00	6.00	50.0
GSMD0603-003-60V	0.03	0.09	60	20	0.5	0.20	1.00	6.00	50.0
GSMD0603-004-24V	0.04	0. 12	24	20	0.5	0.20	1.00	4.00	40.0
GSMD0603-004-33V	0.04	0. 12	33	20	0.5	0.20	1.00	4.00	40.0
GSMD0603-004-36V	0.04	0. 12	36	20	0.5	0.20	1.00	4.00	40.0
GSMD0603-004-48V	0.04	0. 12	48	20	0.5	0.20	1.00	4.00	40.0
GSMD0603-005-6V	0.05	0.15	6	40	0.5	0.25	1.00	3.80	30.0
GSMD0603-005-9V	0.05	0.15	9	40	0.5	0.25	1.00	3.80	30.0
GSMD0603-005-15V	0.05	0.15	15	40	0.5	0.25	1.00	3.80	30.0
GSMD0603-005-24V	0.05	0.15	24	40	0.5	0.25	1.00	3.80	30.0
GSMD0603-005-33V	0.05	0.15	33	40	0.5	0.25	1.00	3.80	30.0

Part Number	Ihold	Itrip	Vmax	Imax	Pd typ	Time to trip		Rmin	R1max
Part Number	(A)	(A)	(Vdc)	(A)	(W)	(A)	(Sec)	(Ω)	(Ω)
GSMD0603-005-48V	0.05	0.15	48	40	0.5	0.25	1.00	3.80	30.0
GSMD0603-008-24V	0.08	0.24	24	100	0.5	0.50	0.50	3.00	14.0
GSMD0603-008-30V	0.08	0.24	30	100	0.5	0.50	0.50	3.00	14.0
GSMD0603-008-33V	0.08	0.24	33	100	0.5	0.50	0.50	3.00	14.0
GSMD0603-010-6V	0.10	0.30	6	40	0.5	0.50	0.60	0.90	8.00
GSMD0603-010-9V	0.10	0.30	9	40	0.5	0.50	0.60	0.90	8.00
GSMD0603-010-12V	0.10	0.30	12	40	0.5	0.50	0.60	0.90	8.00
GSMD0603-010-15V	0.10	0.30	15	40	0.5	0.50	0.60	0.90	8.00
GSMD0603-010-24V	0.10	0.30	24	40	0.5	0.50	0.60	0.90	8.00
GSMD0603-010-33V	0.10	0.30	33	40	0.5	0.50	0.60	0.90	8.00
GSMD0603-010-36V	0.10	0.30	36	40	0.5	0.50	0.60	0.90	8.00
GSMD0603-010-40V	0.10	0.30	40	40	0.5	0.50	0.60	0.90	9.00
GSMD0603-012-9V	0. 12	0.36	9	40	0.7	0.80	0.20	0.70	6.00
GSMD0603-012-24V	0. 12	0.36	24	40	0.7	0.80	0.20	0.70	6.00
GSMD0603-012-36V	0. 12	0.36	36	40	0.7	0.80	0.20	0.70	6.00
GSMD0603-012-45V	0. 12	0.36	45	10	0.7	0.80	0.20	0.70	6.00
GSMD0603-016-15V	0.16	0.40	15	40	0.5	0.50	0.60	0.60	6.00
GSMD0603-016-24V	0.16	0.40	24	40	0.5	0.50	0.60	0.60	6.00
GSMD0603-016-33V	0.16	0.40	33	40	0.5	0.50	0.60	0.60	6.00
GSMD0603-020-6V	0.20	0.50	6	40	0.5	1.00	0.60	0.55	3.50
GSMD0603-020-9V	0.20	0.50	9	40	0.5	1.00	0.60	0.55	3.50
GSMD0603-020-12V	0.20	0.50	12	40	0.5	1.00	0.60	0.55	3.50
GSMD0603-020-16V	0.20	0.50	16	40	0.5	1.00	0.60	0.55	3.50
GSMD0603-020-24V	0.20	0.50	24	40	0.5	1.00	0.60	0.55	3.50
GSMD0603-020-30V	0.20	0.50	30	40	0.5	1.00	0.60	0.55	3.50
GSMD0603-020-48V	0.20	0.50	48	40	0.5	1.00	0.60	0.55	3.50
GSMD0603-025-6V	0.25	0.55	6	40	0.5	8.00	0.08	0.50	3.00
GSMD0603-025-9V	0.25	0.55	9	40	0.5	8.00	0.08	0.50	3.00
GSMD0603-025-12V	0.25	0.55	12	40	0.5	8.00	0.08	0.50	3.00
GSMD0603-025-16V	0.25	0.55	16	40	0.5	8.00	0.08	0.50	3.00
GSMD0603-025-24V	0.25	0.55	24	40	0.5	8.00	0.08	0.50	3.00
GSMD0603-030-6V	0.30	0.65	6	40	0.5	8.00	0.10	0.30	1.70
GSMD0603-030-16V	0.30	0.65	16	40	0.5	8.00	0.10	0.30	1.70
GSMD0603-035-6V	0.35	0.75	6	40	0.5	8.00	0.10	0.20	1.40
GSMD0603-035-9V	0.35	0.75	9	40	0.5	8.00	0.10	0.20	1.40
GSMD0603-035-12V	0.35	0.75	12	40	0.5	8.00	0.10	0.20	1.40
GSMD0603-035-16V	0.35	0.75	16	40	0.5	8.00	0.10	0.20	1.40

Part Number	Ihold	Itrip	Vmax	Imax	Pd typ	Time to trip		Rmin	R1max
Part Number	(A)	(A)	(Vdc)	(A)	(W)	(A)	(Sec)	(Ω)	(Ω)
GSMD0603-035-24V	0.35	0.75	24	40	0.8	8.00	0.15	0.16	1.40
GSMD0603-040-6V	0.40	0.80	6	40	0.8	8.00	0.15	0. 11	1.00
GSMD0603-040-16V	0.40	0.80	16	40	0.8	8.00	0.15	0. 11	1.00
GSMD0603-040-24V	0.40	0.80	24	40	0.8	8.00	0.15	0. 11	1.00
GSMD0603-050-6V	0.50	1.00	6	40	0.5	8.00	0.10	0.10	0.80
GSMD0603-050-9V	0.50	1.00	9	40	0.5	8.00	0.10	0.10	0.80
GSMD0603-050-12V	0.50	1.00	12	40	0.5	8.00	0.10	0.10	0.80
GSMD0603-050-16V	0.50	1.00	16	40	0.5	8.00	0.10	0.10	0.80
GSMD0603-050-24V	0.50	1.00	24	40	0.8	8.00	0.15	0.10	0.85
GSMD0603-075-6V	0.75	1.50	6	40	0.5	8.00	0.10	0.06	0.45
GSMD0603-075-8V	0.75	1.50	8	40	0.5	8.00	0.10	0.06	0.45
GSMD0603-075-12V	0.75	1.50	12	40	0.5	8.00	0.10	0.06	0.45
GSMD0603-100-6V	1.00	2.00	6	40	0.5	8.00	0.10	0.05	0.30
GSMD0603-100-12V	1.00	2.00	12	40	0.5	8.00	0.10	0.05	0.30

I hold = Hold current: maximum current device will pass without tripping in 25℃ still air.

I trip = Trip current: minimum current at which the device will trip in 25℃ still air.

V max = Maximum voltage device can withstand without damage at rated current (I max).

I max = Maximum fault current device can withstand without damage at rated voltage (V max).

P d typ. = Typical power dissipated from device when in the tripped state at 25℃ still air.

T trip = Maximum time to trip(s) at assigned current reflow soldering of 260℃ for 20 sec.

R min = Minimum resistance of device in initial (un-soldered) state.

R 1max = Maximum resistance of device at 25℃ measured one hour after tripping or reflow soldering of 260℃ for 20 sec.

Caution : Operation beyond the specified rating may result in damage and possible arcing and flame.

Thermal Deg Curve

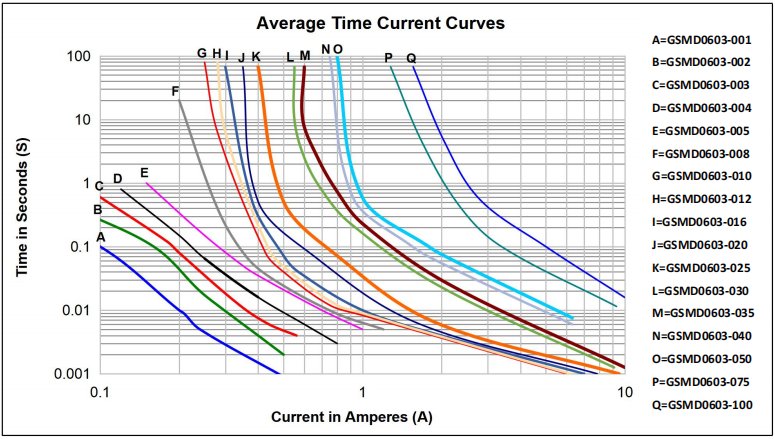

Typical Time-to-Trip At 25℃

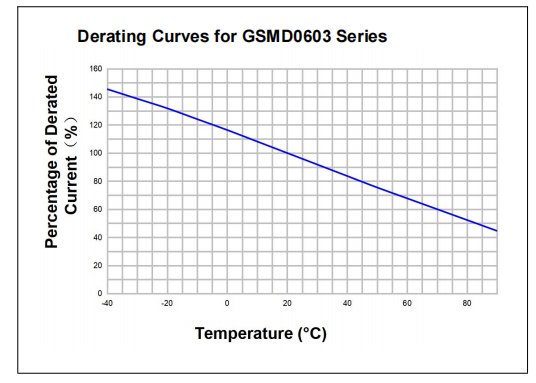

Thermal Derating Chart

Recommended Hold Current (A) at Ambient Temperature (℃)

Part Number	Ambient operating temperature hold current(Ihold)
Part Number	-40℃	-20℃	0℃	25℃	40℃	50℃	60℃	70℃	85℃
GSMD0603-001	0.016	0.014	0.012	0.010	0.008	0.007	0.006	0.005	0.0035
GSMD0603-002	0.031	0.027	0.024	0.020	0.016	0.014	0.012	0.011	0.007
GSMD0603-003	0.048	0.041	0.036	0.030	0.024	0.021	0.018	0.016	0.011
GSMD0603-004	0.052	0.048	0.044	0.040	0.032	0.028	0.024	0.020	0.012
GSMD0603-005	0.065	0.060	0.055	0.050	0.040	0.035	0.031	0.025	0.015
GSMD0603-008	0. 11	0.10	0.09	0.08	0.06	0.05	0.04	0.03	0.02
GSMD0603-010	0.13	0. 12	0. 11	0.10	0.08	0.07	0.06	0.05	0.03
GSMD0603-012	0.19	0.17	0.15	0. 12	0.10	0.09	0.08	0.06	0.05
GSMD0603-016	0.21	0.19	0.18	0.16	0.13	0. 12	0.10	0.09	0.06
GSMD0603-020	0.27	0.25	0.23	0.20	0.17	0. 14	0. 12	0.10	0.07
GSMD0603-025	0.32	0.29	0.27	0.25	0.21	0.18	0.16	0. 14	0.10
GSMD0603-030	0.42	0.38	0.35	0.30	0.26	0.21	0.18	0.15	0. 11
GSMD0603-035	0.47	0.41	0.38	0.35	0.29	0.26	0.24	0.20	0. 14
GSMD0603-040	0.55	0.49	0.43	0.40	0.34	0.29	0.26	0.22	0.16
GSMD0603-050	0.67	0.59	0.51	0.50	0.41	0.37	0.34	0.29	0.20
GSMD0603-075	0.98	0.85	0.81	0.75	0.60	0.54	0.44	0.40	0.31
GSMD0603-100	1.19	1.13	1.08	1.00	0.80	0.72	0.59	0.54	0.43

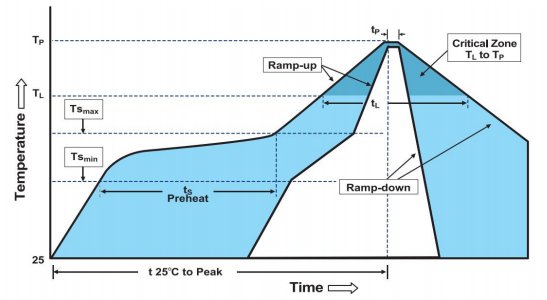

Soldering Parameters

Profile Feature	Pb-Free Assembly
Average Ramp-Up Rate(Tsmax to Tp)	3℃/second max
Preheat Temperature Min(Tsmin) -Temperature Max(Tsmax) -Time(Tsmin to Tsmax)	150℃ 200℃ 60~ 180 seconds
Time maintained above: -Temperature(TL) Time(tL)	217℃ 60~ 150 seconds
Peak Temperature(Tp)	260℃
Ramp-Down Rate	6℃/second max
Time 25℃ to Peak Temperature	8 minutes max
Storage Condition	0℃~30℃,30%-60%RH

◉ Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free;

◉ Recommended maximum paste thickness is 0.25mm;

◉ Devices can be cleaned using standard industry methods and solvents;

Note 1: All temperature refer to topside of the package, measured on the package body surface;

Note 2: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements.

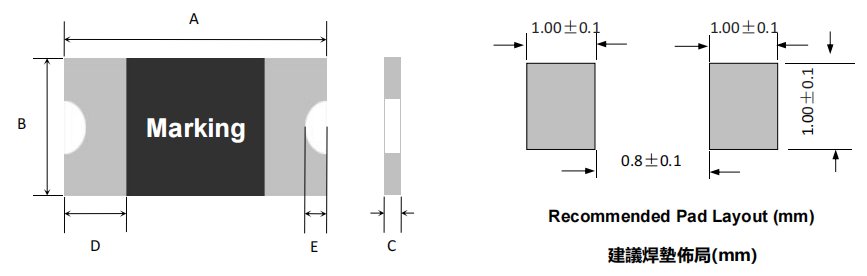

Physical Dimensions (mm)

Part Number	Marking	Quantity	A		B		C		D	E
Part Number	Marking	Quantity	Min	Max	Min	Max	Min	Max	Min	Min
GSMD0603-001-30V	X	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-001-60V	X	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-001-72V	X	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-002-30V	Y	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-002-60V	Y	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-003-30V	Z	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-003-60V	Z	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-004-24V	-	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-004-33V	-	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-004-36V	-	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-004-48V	-	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-005-6V	-	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-005-9V	-	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-005-15V	-	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-005-24V	-	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-005-33V	-	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-005-48V	-	4000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-008-24V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-008-30V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-008-33V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10

Part Number	Marking	Quantity	A		B		C		D	E
Part Number	Marking	Quantity	Min	Max	Min	Max	Min	Max	Min	Min
GSMD0603-010-6V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-010-9V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-010-12V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-010-15V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-010-24V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-010-33V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-010-36V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-010-40V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-012-9V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-012-24V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-012-36V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-012-45V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-016-15V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-016-24V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-016-33V	1	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-020-6V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-020-9V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-020-12V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-020-16V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-020-24V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-020-30V	2	5000	1.45	1.85	0.65	1.05	0.60	1.30	0.15	0.10
GSMD0603-020-48V	2	5000	1.45	1.85	0.65	1.05	0.60	1.30	0.15	0.10
GSMD0603-025-6V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-025-9V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-025-12V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-025-16V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-025-24V	2	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-030-6V	3	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-030-16V	3	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-035-6V	3	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-035-9V	3	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-035-12V	3	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-035-16V	3	5000	1.45	1.85	0.65	1.05	0.40	1.00	0.15	0.10
GSMD0603-035-24V	5	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-040-6V	5	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10

Part Number	Marking	Quantity	A Min Max		B Min Max		C Min Max		D Min	E Min
GSMD0603-040-16V	5	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-040-24V	5	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-050-6V	5	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-050-9V	5	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-050-12V	5	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-050-16V	5	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-050-24V	5	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-075-6V	7	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-075-8V	7	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-075-12V	7	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-100-6V	0	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10
GSMD0603-100-12V	0	4000	1.45	1.85	0.65	1.05	0.55	1.15	0.15	0.10

Environmental Specifications

Test	Conditions	Resistance change
Resistance to solvent	MIL-STD-202,Method 215	No change
Vibration	MIL-STD-202,Method 201	No change

Ambient operating conditions : - 40 °C to +85 °C

Maximum surface temperature of the device in the tripped state is 125 °C

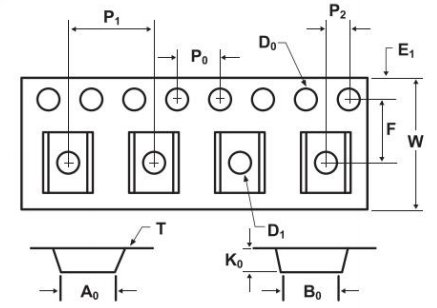

Tape And Reel Specifications (mm)

Governing Specifications	GSMD0603-001~ GSMD0603-035	GSMD0603-050~ GSMD0603-075	GSMD0603-100
W	8.0 ± 0.3	8.0 ± 0.3	8.0 ± 0.3
F	3.5 ± 0.05	3.5 ± 0.05	3.5 ± 0.05
E1	1.75 ± 0.1	1.75 ± 0.1	1.75 ± 0.1
D0	1.55 ± 0.05	1.55 ± 0.05	1.55 ± 0.05
D1	1.0 ± 0.1	1.0 ± 0.1	1.0 ± 0.1
P0	4.0 ± 0.1	4.0 ± 0.1	4.0 ± 0.1
P1	4.0 ± 0.1	4.0 ± 0.1	4.0 ± 0.1
P2	2.0 ± 0.05	2.0 ± 0.05	2.0 ± 0.05
A0	1.10 ± 0.1	1.10 ± 0.1	1.10 ± 0.1
B0	1.95 ± 0.1	1.95 ± 0.1	1.95 ± 0.1
T	0.2 ± 0.1	0.2 ± 0.1	0.2 ± 0.1
K0	0.74 ± 0.1	1.04 ± 0.1	1.35 ± 0.1
Leader min	390	390	390
Trailer min	160	160	160

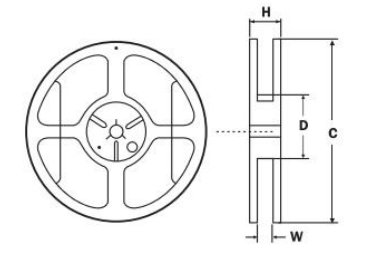

Reel Dimensions
C	φ178 ± 1.0
D	φ60.2 ± 0.5
H	11.0 ± 0.5
W	9.0 ± 1.5

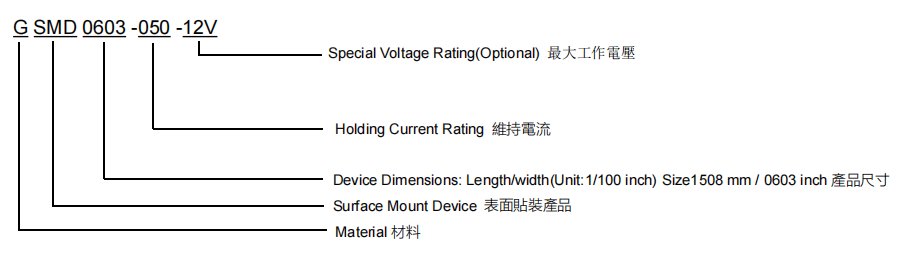

Part Number System

REVIEWS

Write A Review

Nickname:*
E-mail:*
Comment:*

INQUIRY
