Thermal Protector
45-150℃ Thermal Cutoff Over Heat Protector Small BW-02 Series 10A
Product Description
Technical parameters
Temperature range for use:45-150℃；
Temperature tolerance:±5℃；
All riveted parts bear 3.0 kg tension displacement.
PRODUCT
DETAILS
Detail Information
| Insulation Resistance: | ≥100MΩ | Rated Voltage: | 250V |
| Contact Resistance: | ≤50mΩ | Terminal Type: | Axial Leads |
| Response Time: | ≤1s | Dielectric Strength: | 1500VAC |
| Max. Trip Current: | 20A | Rated Current: | 10A |
| Highlight: | BW-02 Series Over Heat Protector，Over Heat Protector 10A，10A Thermal Cutoff | ||
Product Description
BW-02 Series 45-150℃ Small Size Heat Protector Thermal Safety Cutoff Over Heat Protector Thermal Cutoff
BW-02 series heat protector

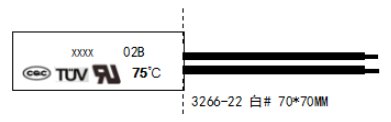

Product size:(±0.1)
02 Plastic case: 5.4mm*2.4mm*15mm
5.4mm*2.4mm*12mm
02 Metal case:5.0MM*2.4MM*14MM
| Model | Action temperature ℃ | Reset temperature℃ | Model | Action temperature ℃ | Reset temperature ℃ |
| 02B(K)-45℃ | 45±5 | 25±8 | 02B(K)-100℃ | 100±5 | 65±15 |
| 02B(K)-50℃ | 50±5 | 30±8 | 02B(K)-105℃ | 105±5 | 70±15 |
| 02B(K)-55℃ | 55±5 | 35±10 | 02B(K)-110℃ | 110±5 | 75±15 |
| 02B(K)-60℃ | 60±5 | 40±10 | 02B(K)-115℃ | 115±5 | 75±15 |
| 02B(K)-65℃ | 65±5 | 45±10 | 02B(K)-120℃ | 120±5 | 80±15 |
| 02B(K)-70℃ | 70±5 | 45±10 | 02B(K)-125℃ | 125±5 | 85±15 |
| 02B(K)-75℃ | 75±5 | 50±15 | 02B(K)-130℃ | 130±5 | 90±15 |
| 02B(K)-80℃ | 80±5 | 55±15 | 02B(K)-135℃ | 135±5 | 95±15 |
| 02B(K)-85℃ | 85±5 | 55±15 | 02B(K)-140℃ | 140±5 | 100±15 |
| 02B(K)-90℃ | 90±5 | 60±15 | 02B(K)-145℃ | 145±5 | 105±15 |
| 02B(K)-95℃ | 95±5 | 65±15 | 02B(K)-150℃ | 150±5 | 110±15 |
Certificate:
CQC:CQC19002228166
TUV:64105193032001
UL: E509344
SGS:CANEC2006030601
