The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Features:
High reliability,
long life,
stable performance,
high accuracy,
small radio interference,
flexible installation,
not arcing.
Detail Information
| Reset Temperature: | Less Than 85% Of Rated Temperature | Certifications: | UL, CSA, VDE, CQC |
| Product Type: | Electrical Components | Rated Voltage: | 250V AC |
| Response Time: | Less Than 5 Seconds | Terminal Type: | Axial Lead |
| Highlight: | Thermostat Thermal Cutoff，KSD302 Thermal Cutoff，Ventilating Equipment Thermal Cutoff | ||
Product Description

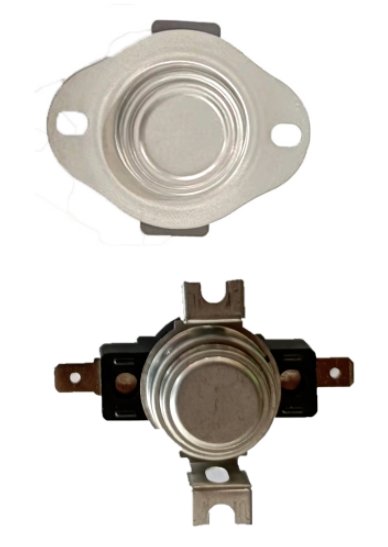

KSD302 Series 45-240℃ Jump Thermostat Thermal Safety Cutoff For Heating And Ventilating Equipment
Description:
KSD302 series thermostat is a bimetallic thermostat with shell, which belongs to the category of temperature relay. By using the principle of the bimetal disc producing instantaneous jump under the action of temperature, the circuit can be disconnected or connected through the action of mechanism. Its working temperature is fixed, no need to adjust, reliable and crisp action, small arc, long service life, less radio interference.

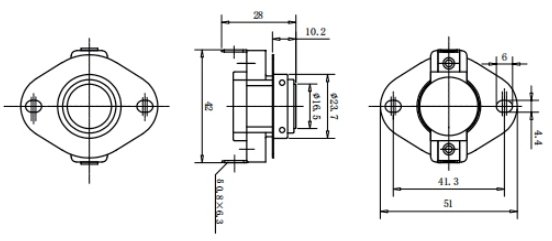

Dimension (Unit mm):
Main Technical Parameters:
Temperature range: 45 ° C--240 ° C, according to customer requirements can provide any temperature in its range.
Temperature Allowable Tolerance(%): ± 5 ° C, ± 7 ° C, according to customer requirements can provide its range of arbitrary temperature.
Contact resistance:≦50mΩ
Insulation resistance:≧100MΩ
Electrical specifications:AC240V,25A-45A
Life Times:100000
Applications:
Heating and ventilating equipment,
Electric water heaters,
Vending machine,
Air compressors,
Electric furnaces,
Dryers, etc.
