OUR Products
The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Features:
Product Name: Thermal cutoff
Rated Current: 10A
Contact Resistance: ≤50mΩ
Max. Holding Current: 15A
Max. Trip Current: 20A
Insulation Resistance: ≥100MΩ
Detail Information
| Insulation Resistance: | ≥100MΩ | Rated Voltage: | 250V |
| Contact Resistance: | ≤50mΩ | Terminal Type: | Axial Leads |
| Response Time: | ≤1s | Dielectric Strength: | 1500VAC |
| Max. Trip Current: | 20A | Rated Current: | 10A |
| Highlight: | BW-16A-50A Series Thermal Protector，BW-16A-50A Over Heat Protector，Thermal Cutoff 10A | ||
Product Description

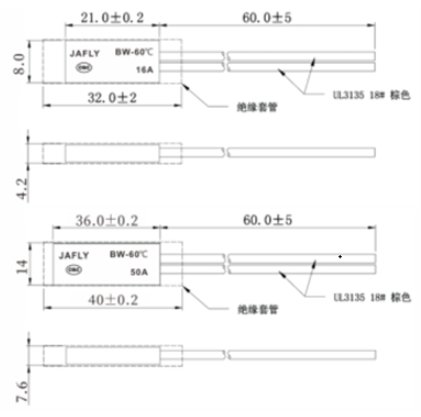

BW-16A-50A Series Heat Protector Thermal Safety Cutoff Over Heat Protector Thermal Cutoff
Electrical specifications: 10-16A 20A-50A
| Action temperature | Reset temperature | Action temperature | Reset temperature | Action temperature | Reset temperature | Action temperature | Reset temperature |
| 60±5℃ | 40±10℃ | 85±5℃ | 55±15℃ | 115±5℃ | 75±15℃ | 140±5℃ | 100±15℃ |
| 65±5℃ | 45±10℃ | 90±5℃ | 60±15℃ | 120±5℃ | 80±15℃ | 145±5℃ | 105±15℃ |
| 70±5℃ | 45±10℃ | 95±5℃ | 65±15℃ | 125±5℃ | 85±15℃ | 150±5℃ | 110±15℃ |
| 75±5℃ | 50±15℃ | 100±5℃ | 65±15℃ | 130±5℃ | 90±15℃ | ||
| 80±5℃ | 55±15℃ | 105±5℃ | 70±15℃ | 135±5℃ | 95±15℃ |
Product Description:
With a Contact Resistance of ≤50mΩ, our Thermal Cutoff ensures a reliable and efficient connection. The Insulation Resistance of ≥100MΩ guarantees that the thermal cutoff will not leak current and will maintain its safety features. The Terminal Type of Axial Leads makes it easy to connect to your device.
Our Thermal Cutoff has a Dielectric Strength of 1500VAC, which means it can withstand high voltage without breaking down. This makes it a safe and reliable option for your device. The Max. Trip Current of 20A ensures that the thermal cutoff will activate and protect your device when it exceeds the temperature limit.
Our Thermal Cutoff is perfect for a variety of applications, including but not limited to:
Electrical appliances
Power supplies
Transformers
Battery packs
Charge controllers
LED lighting
Don't risk damaging or destroying your valuable equipment. Invest in our reliable and efficient Thermal Cutoff for your thermal protection needs. Order now and enjoy peace of mind knowing your device is protected against overheating and potential damage.
