Surface Mount Fuse
Source wholesale 2410/1808/6125 surface mount chip fuses directly from a professional ceramic SMD fuse manufacturer, offering reliable 3A, 3.15A and 3.5A circuit protection solutions for power supplies, LED drivers, industrial equipment and telecom applications.
Features
·Lead-Free and RoHS compliant
·Inrush withstand capability
·Wide range of current rating
·Excellent environmental integrity
·Operating temperaturerange-55℃ to+125℃(consider de-rating)
Detail Information:
| Voltage Rating: | 125V | Mounting Type: | Surface Mount |
| Design: | Solder-free | Mounting Style: | SMD |
| Breaking Capacity: | 100A | Automatic Reset Function: | None |
| Highlight: | 6125 Surface Mount Chip Fuse，Surface Mount Chip Fuse 3.5A，Surface Mount Chip Fuse 125V | ||
Product Description
2410/1808/6125 3A 3.15A 3.5A 125V/250V/300V Fast-Acting Surface Mount Fuse Ceramic Patch Fuses Chip Fuses
Description
2410/6125 Series slow-blow square Surface Mount fuses are ceramic tube/ end cap constructions,RoHS compliant,Halogen Free and lead-free, with U.S.(UL/CSA)safety agency approvals.Provide board level primary and secondary circuit protection in a wide variety of applications,end caps are available in copper or silver plated.
Electrical Characteristics(UL/CSA,248-14)File No.E340427
| Amnere Rating | of current Rating | Blowing Time |
0.05A-15A | 100% | >4hours |
| 0.05A-15A | 200% | <120sec |
Applications
·LED driver
·PC computer
·Notebook/Laptops
·Digital camera
·LCD/LED monitor/TV/backlight inverter
·Industrial equipment
·Networking device
·Telecom device
·Power supply
| Catalog Number | Ampere Rating(A) | Voltage Rating(V) | Interrupting Rating |
| SET0062 | 0.062 |
250V SET(0.05-7A)
300V SST(0.05-7A)
125V STE(0.05-15A) |
50A@250V/300V 200A@125V |
| SET0080 | 0.080 | ||
| SET0100 | 0.100 | ||
| SET0125 | 0.125 | ||
| SET0200 | 0.200 | ||
| SET0250 | 0.250 | ||
| SET0300 | 0.300 | ||
| SET0375 | 0.375 | ||
| SET0400 | 0.400 | ||
| SET0500 | 0.500 | ||
| SET0600 | 0.600 | ||
| SET0630 | 0.630 | ||
| SET0700 | 0.700 | ||
| SET0750 | 0.750 | ||
| SET0800 | 0.800 | ||
| SET1100 | 1 |
| Catalog Number | Ampere Rating(A) | Voltage Rating(V) | Interrupting Rating |
| SET1125 | 1.25 |
250V SEF(0.05-7A)
300V SSF(0.05-7A)
125V SFE(0.05-15A) |
50A@250V/300V 200A@125V |
| SET1150 | 1.5 | ||
| SET1160 | 1.6 | ||
| SET1200 | 2 | ||
| SET1250 | 2.5 | ||
| SET1300 | 3 | ||
| SET1315 | 3.15 | ||
| SET1350 | 3.5 | ||
| SET1400 | 4 | ||
| SET1500 | 5 | ||
| SET1600 | 6 | ||
| SET1630 | 6.3 | ||
| SET1700 | 7 | ||
| SET1750 | 7.5 | ||
| SET1800 | 8 | ||
| SET2100 | 10 | ||
| SET2120 | 12 | ||
| SET2150 | 15 |

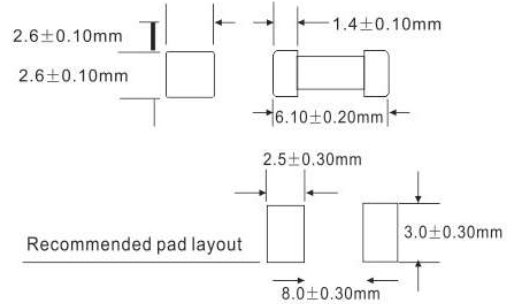

Dimension (Unit mm)
Materials
Body:ceramic
End caps:Copper or Silver plated brass
Fuse element:Alloy wire
Packaging
1,000 pcs per reel
