The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Features
1. Rapid operation to protect the circuit in an overcurrent condition abnormality such as a short circuit.
By removing the overcurrent condition, these products automatically return to the initial condition and can be used repeatedly.
2. Suitable for countermeasure to short circuit test in safety standard.
3. Stable resistance after operation due to ceramic PTC.
4. Similar size is possible due to the large capacity for electric power.
5. Possible to use these products as current limiting resistors with ercurrent protection functions
6. The SMD type's small size and light weight are helpful in miniaturizing the circuit.
Detail Information
| Varistor Voltage: | 390±10% VDC | Curie Temp: | 125±10℃ |
| Wire Tension: | Under 10N, 10S Tension Without Damage | Certifications: | UL, CSA, VDE, RoHS |
| Temperature: | 120°C | Operating Voltage: | 6V~240V |
| Pitch F: | 5.0±1mm | ||
| Highlight: | Ceramic PTC Chip Thermistor，Circuit Miniaturization PTC Chip Thermistor，SMD PTC Chip Thermistor | ||
Product Description
1210-550 Chip Ceramic PTC Thermistor Mini SMD CPTC Thermistor For Overcurrent Protection And Circuit Miniaturization
Overcurrent Protection device with resettable function suitable for current limiting resistor.
This product is a chip type PTCthermistor for overcurrent protection that is suitable for the following.
· Countermeasure for short circuit testing · Current limiting resistor.
Applications
1. Laptop computer
2. AC power adapter
3. Rechargeable battery pack
4. LED
5. Overcurrent protection for consumer electronic devices

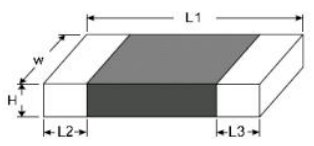

Structure and size
| NO | SIZE(EIA) | L1 | W | H max. | L2 and L3. |
| TPM1P | 0603 | 1.60±0.15 | 0.80±0.15 | 0.80±0.15 | 0.40±0.20 |
| TPM2P | 0805 | 2.00±0.20 | 1.25±0.20 | 1.00 max. | 0.45±0.25 |
| TPM4P | 1210 | 3.20±0.30 | 2.50±0.25 | 1.80 max. | 0.50±0.20 |
The following applies only to TPM2P150M100R and TPM2P220M100R | |||||
| TPM2P | 0805 | 2.00±0.20 | 1.25±0.20 | 1.45 | 0.45±0.25 |
Electrical Characteristics
0603 Series
Part No. |
Curie temperature |
25℃ Rated Resistance |
Non-Operating Current |
Tip current |
Max Voitage |
Max Current |
Operating temperature range | |||
| @ +60℃ | @ +25℃ | @+25℃ | @ -10℃ | @ Vmax | @V=0 | |||||
| Tc (℃) | R25 (Ω) | IN (mA) | IT (mA) | Vmax (VDC ) | Imax (mA) | TL~TU (℃) | ||||
| TPM1P330M100R |
100±10 | 33 | 25 | 36 | 71 | 85 |
24 | 900 |
-10 ~ +60 |
-40~ +125 |
| TPM1P470M100R | 47 | 20 | 29 | 61 | 75 | 630 | ||||
| TPM1P600L100R | 60 | 20 | 29 | 61 | 75 | 500 | ||||
| TPM1P800M100R | 80 | -- | 26 | 55 | -- | 400 | ||||
| TPM1P101M100R | 100 | 15 | 21 | 45 | 55 | 300 | ||||
| TPM1P221M100R | 220 | 10 | 14 | 29 | 35 | 130 | ||||
| TPM1P471M100R | 470 | 7 | 10 | 21 | 25 | 60 | ||||
0805 Series
Part No. |
Curie temperature |
25℃ Rated Resistance |
Non-Operating Current |
Tip current
|
Max Voitage
|
Max Current
| Operating temperature range | ||||
| @ +85℃ | @ +25℃ | @+25℃ | @ -40℃ | @ Vmax | @V=0 | ||||||
| Tc (℃) | R25 (Ω) | IN (mA) | IT (mA) | Vmax (VDC ) | Imax (mA) | TL~TU (℃) | |||||
| TPM2P150M100R |
100±10 | 15 | 40 | 59 | 116 | 140 |
20 | 1600 |
-10 ~ +60 | -40~ +125 | |
| TPM2P220M100R | 22 | 30 | 44 | 91 | 110 | 1100 | |||||
| TPM2P221M100R | 220 | 10 | 14 | 29 | 35 | 24 | 130 | ||||
1210 Series
Part No. |
Curie temperature |
25℃ Rated Resistance |
Non-Operating Current |
Tip current
|
Max Voitage
|
Max Current
| Operating temperature range | |||
| @ +85℃ | @ +25℃ | @+25℃ | @ -40℃ | @ Vmax | @V=0 | |||||
| Tc (℃) | R25 (Ω) | IN (mA) | IT (mA) | Vmax (VDC ) | Imax (mA) | TL~TU (℃) | ||||
| TPM4P270H110R | 110±10 | 27 | 40 | 90 | 180 | 263 | 30 | 500 |
-40 ~ +85 |
-40~ +125 |
| TPM4P550H120R | 120±10 | 55 | 34 | 60 | 130 | 190 | 30 | 400 | ||
| TPM4P121H120R | 120±10 | 120 | 23 | 40 | 90 | 132 | 80 | 300 | ||
| TPM4P401H090R | 90±10 | 400 | 6 | 15 | 40 | 59 | 265 | 200 | ||
| TPM4P152S120R | 120±10 | 1500 | 4 | 12 | 22 | 32 | 400 | 150 | ||

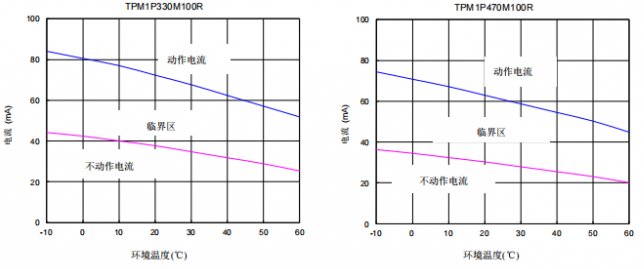

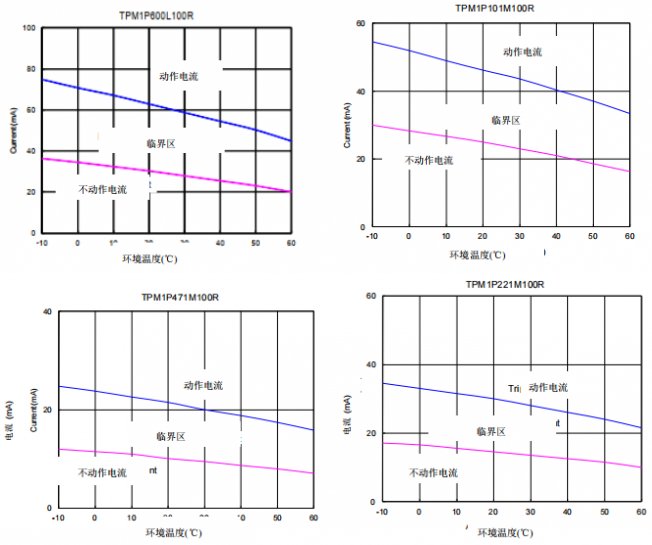

Protection current range(0603Series)

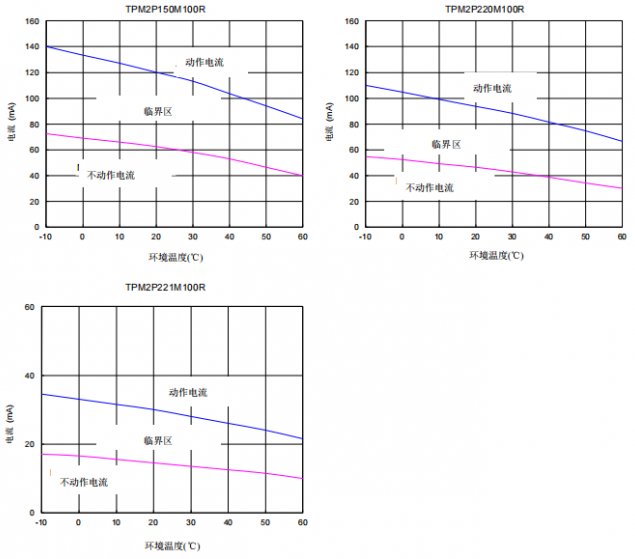

Protection current range(0805Series)

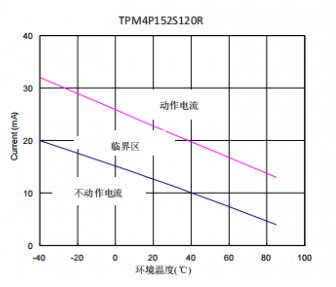

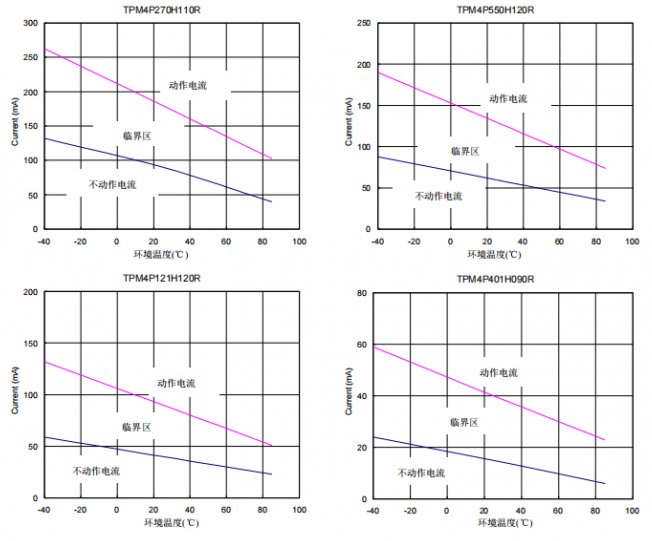

Protection current range(1210Series)

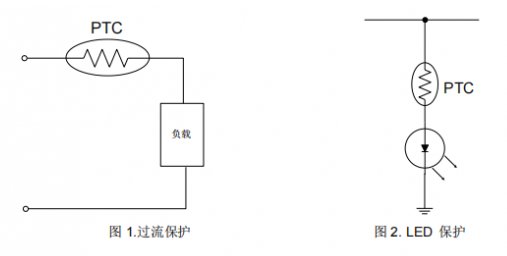

Typical Application Circuit
Packaging
| Size(EIA) | Quantity(Pcs/roll) |
| 0603 | 4,000 |
| 0805 | 3,500 |
| 1210 | 2,500 |
