OUR Products
The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Features
◆ Short response time for rapid protection
◆ Automatic resetting once overcurrent is removed
◆ Leaded parts withstand mechanical stresses and vibration
◆ High thermal stability
Detail Information
| Max Voltage: | 270V Vrms | Certified: | RoHS-compatible / UL |
| Materia: | Plastic & Ceramic Chip | Element: | PTC DISK |
| Environment Temperature: | -30 / +85℃ | Lead Dia: | 0.8mm |
| Highlight: | 15P Positive Coefficient Thermistor，Linear Ptc Thermistor 15P，Inverter Linear Ptc Thermistor | ||
Product Description
PTC Thermistor 15P Positive Coefficient Thermistor Linear Ptc Thermistor For Inverter Welding Machine
Application
◆ Over current protection in:
◆ Industrial electronics
◆ Consumer electronics
◆ Electronic data processing
◆ Short current protection
When PTC is used as over-current protection element, the specification of the maximum non-action current and the maximum working voltage should be selected, at the same time, we should also consider the element size, rated zero-power resistance, the use of temperature range and other factors. Usually, the maximum current of PTC is 1.2-1.5 times of the maximum current when the circuit is working normally The voltage that may be applied to the PTC under normal or abnormal conditions should not be greater than its maximum operating voltage.
A Straight | Type of diameter |
DMAX |
F | φd |
IMAX |
TMAX |
| Φ5(E) | 6.5 | 5.0±1.0 | Φ0.6±0.05 | 2.0 | 5.0 | |
| Φ7(G) | 8.5 | 5.0±1.0 | Φ0.6±0.05 | 2.5 | 5.0 | |
| Φ8(H) | 9.5 | 5.0±1.0 | Φ0.6±0.05 | 2.5 | 5.0 | |
| Φ9(I) | 10.5 | 5.0±1.0 | Φ0.6±0.05 | 3.0 | 5.0 | |
| Φ10(J) | 11.5 | 5.0±1.0 | Φ0.6±0.05 | 3.0 | 5.0 | |
| Φ12(L) | 14.0 | 5.0±1.0 | Φ0.6±0.05 | 3.0 | 6.0 | |
| Φ14((N) | 16.0 | 5.0±1.0 | Φ0.6±0.05 | 3.0 | 6.0 | |
| Φ16(P) | 18.5 | 7.5±1.0 | Φ0.8±0.05 | 3.0 | 7.0 | |
| Φ20(T) | 22.5 | 7.5±1.0 | Φ0.8±0.05 | 3.5 | 7.0 | |
F Inside Kink | Type of diameter |
DMAX |
F | φd |
L |
TMAX |
| Φ5(E) | 6.5 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 5.0 | |
| Φ7(G) | 8.5 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 5.0 | |
| Φ8(H) | 9.5 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 5.0 | |
| Φ9(I) | 10.5 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 5.0 | |
| Φ10(J) | 11.5 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 5.0 | |
| Φ12(L) | 14.0 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 6.0 | |
| Φ14((N) | 16.0 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 6.0 | |
| Φ16(P) | 18.5 | 7.5±1.0 | Φ0.8±0.05 | 5.0±2.0 | 7.0 | |
| Φ20(T) | 22.5 | 7.5±1.0 | Φ0.8±0.05 | 5.0±2.0 | 7.0 | |
F Outside Kink | Type of diameter |
DMAX |
F | φd |
L |
TMAX |
| Φ5(E) | 6.5 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 5.0 | |
| Φ7(G) | 8.5 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 5.0 | |
| Φ8(H) | 9.5 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 5.0 | |
| Φ9(I) | 10.5 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 5.0 | |
| Φ10(J) | 11.5 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 5.0 | |
| Φ12(L) | 14.0 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 6.0 | |
| Φ14((N) | 16.0 | 5.0±1.0 | Φ0.6±0.05 | 5.0±2.0 | 6.0 | |
| Φ16(P) | 18.5 | 7.5±1.0 | Φ0.8±0.05 | 5.0±2.0 | 7.0 | |
| Φ20(T) | 22.5 | 7.5±1.0 | Φ0.8±0.05 | 5.0±2.0 | 7.0 |
Y Type | Type of diameter | DMAX | F | φd | HMAX | TMAX |
| Φ5(E) | 6.5 | 5.0±1.0 | Φ0.6±0.05 | 12.0 | 5.0 | |
| Φ7(G) | 8.5 | 5.0±1.0 | Φ0.6±0.05 | 14.0 | 5.0 | |
| Φ8(H) | 9.5 | 5.0±1.0 | Φ0.6±0.05 | 15.0 | 5.0 | |
| Φ9(I) | 10.5 | 5.0±1.0 | Φ0.6±0.05 | 16.0 | 5.0 | |
| Φ10(J) | 11.5 | 5.0±1.0 | Φ0.6±0.05 | 17.0 | 5.0 | |
| Φ12(L) | 14.0 | 5.0±1.0 | Φ0.6±0.05 | 19.0 | 6.0 | |
| Φ14((N) | 16.0 | 5.0±1.0 | Φ0.6±0.05 | 21.0 | 6.0 | |
| Φ16(P) | 18.5 | 7.5±1.0 | Φ0.8±0.05 | 24.0 | 7.0 | |
| Φ20(T) | 22.5 | 7.5±1.0 | Φ0.8±0.05 | 28.0 | 7.0 |
Technical parameters of products used to protect power supply and general circuits:
Part No. | Non- Operating Current (mA) | Tip Current (mA) | R25 Rated Resistance ( Ω ) | Switching Temperature ( ℃ ) | Max Valtage (V) | Diameter* Thickness ( max) |
| *MZ21-M151RME | 20 | 50 | 150 |
80 | 270 | 6.5*5.0 |
| *MZ21-M101RMG | 35 | 90 | 100 | 270 | 8.5*5.0 | |
| MZ21-M500RMG | 50 | 125 | 50 | 270 | 8.5*5.0 | |
| MZ21-M100RMG | 130 | 260 | 10 | 270 | 8.5*5.0 | |
| *MZ21-M150RMJ | 110 | 275 | 15 | 270 | 11.5*5.0 | |
| *MZ21-M100RMN | 150 | 375 | 10 | 220 | 16.0*6.0 | |
| *MZ21-N151RME | 30 | 75 | 150 |
100 | 270 | 6.5*5.0 |
| *MZ21-N101RME | 35 | 90 | 100 | 270 | 6.5*5.0 | |
| *MZ21-N820RMG | 50 | 125 | 82 | 270 | 8.5*5.0 | |
| MZ21-N150RML | 150 | 300 | 15 | 270 | 14.0*6.0 | |
| *MZ21-N100RMN | 180 | 450 | 10 | 220 | 16.0*6.0 | |
| *MZ21-N8R0RMN | 190 | 470 | 8 | 220 | 16.0*6.0 | |

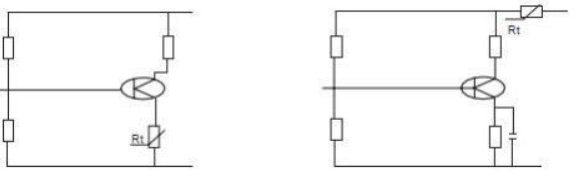

① Operating temperature range:-10℃~-60℃; ② Products can be designed according to special requirements of customers； ③ Models with * have passed UL certification； ④ Application circuit:
transistor circuit
General circuit circuit | ||||||
