OUR Products
The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Features
· Lead-Free and RoHS compliant
· High inrush current withstanding capability
· Compatible with reflow and wave solder
· Excellent environmental integrity
· One time positive disconnect
· Suitable for rated current of 1A-7A
· Operating temperature range -55℃ to+125℃(consider de-rating)
Detail Information
| Voltage Rating: | 125V | Mounting Type: | Surface Mount |
| Design: | Solder-free | Mounting Style: | SMD |
| Breaking Capacity: | 100A | Automatic Reset Function: | None |
| Highlight: | Slow Blow 1206 SMD Fuse, SMD Fuse 20A, 72V Surface Mount Chip Fuse | ||
Product Description

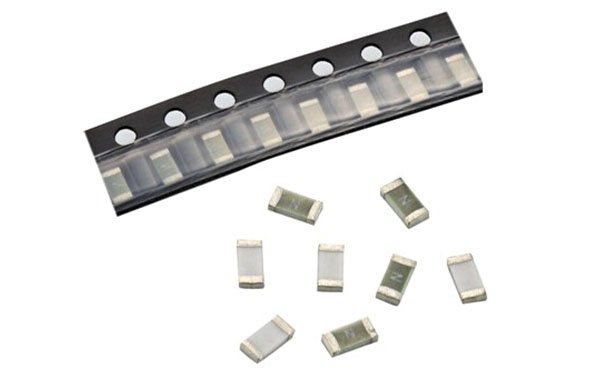

1206 Slow Blow SMD Fuses 20A 63/72V Surface Mount Fuse Slow-Blow Chip Fuses
Description
12.100 Series slow-blow chip fuses help provide overcurrent protection forsystems using DC powersources up to 72VDC.Help provide higher hold current in the smaller footprint,improve product reliability and quality,enhance high-temperature performance in a wide range of circuit designs.
Applications
·USB charger ·DVD players
·Laptops ·Portable electronics
·Digital cameras ·Game systems
·Cell phones ·LCD monitors
·Printers ·Scanners
| Specification | |||||||||
Part No. | Rated Voltage DC | Rated Current (A) | Broaking Capacity(A) | Typical Cold. Resistance (mOhms) | Typical Voltage Drop(mV) | Typical Pre- Arcing I²t (A²Sec) | Alpha Mark | ||
| 12.100.1 |
63V 72V 125V |
32V |
24V | 1 | 50A | 480 | 510 | 0.11 | H |
| 12.100.1.5 | 1.5 | 50A | 230 | 367 | 0.17 | K | |||
| 12.100.2 | 2 | 50A | 140 | 316 | 0.43 | N | |||
| 12.100.2.5 | 2.5 | 50A | 80 | 240 | 0.68 | 0 | |||
| 12.100.3 | 3 | 50A | 50 | 187 | 1.41 | P | |||
| 12.100.3.5 | 3.5 | 50A | 38 | 180 | 1.72 | R | |||
| 12.100.4 | 4 | 50A | 34 | 173 | 1.78 | S | |||
| 12.100.4.5 | 4.5 | 50A | 25 | 164 | 2.65 | X | |||
| 12.100.5 | 5 | 50A | 21.5 | 145 | 2.91 | T | |||
| 12.100.7 | 7 | 50A | 12.3 | 140 | 5.72 | 7 | |||
| 12.100.8 | 8 | 300A | 10 | 123 | 6.8 | M | |||
| 12.100.10 | 10 | 300A | 7 | 110 | 10.6 | U | |||
·DC Interrupting Rating(Measured at rated voltage,time constant of less than 50 microseconds,battery source)
·DC Cold Resistance are measured at<10%of rated current in ambient temperature of 25degrees
Dimension (Unit:mm/inch)
Packaging
3,000 pcs per reel
Product Description:
Our Surface Mount Fuse comes in various power ratings, including 0.125W/0.25W/0.5W/1W/2W, providing flexibility and options to suit your specific requirements.
With a breaking capacity of 100A, our Surface Mount Fuse offers reliable and effective protection against overcurrent and short-circuit events. It ensures that your circuitry and components are safeguarded from damage and downtime.
Our Surface Mount Fuse also offers resistance tolerance options of F=±1%, G=±2%, J=±5%, providing you with the flexibility to choose the level of precision required for your application.
The Surface Mount Fuse is designed for surface mount applications, making it easy to install and integrate into your circuit board. It is a compact and space-saving solution that ensures maximum utilization of your circuit board space.
Our Surface Mount Fuse does not have an automatic reset function, ensuring that it provides reliable and consistent performance.
So, if you're looking for a reliable and effective SMT fuse or SMD fuse, our Surface Mount Fuse is the perfect choice. It offers a range of power ratings, resistance tolerance options, and a high breaking capacity, ensuring that your circuitry and components are protected against overcurrent and short-circuit events.
Applications:
Our SMD fuses are suitable for a wide range of applications in various industries, including consumer electronics, automotive, telecommunications, and industrial control systems. They are commonly used in circuit boards, power supplies, battery chargers, LED lighting systems, and many other electronic devices.
Our SMD fuses have a minimum order quantity of 2000 pieces and a price range of 0.02-0.9 USD, depending on the wattage and voltage rating. We have a supply capacity of 1KKpcs/month, and our delivery time is 5-7 days.
Our SMD fuses are designed to be solder-free, making them easy to install and replace. They have a breaking capacity of 100A, ensuring reliable protection against high-current faults. The voltage rating is 125V, and the maximum fusing time can be consulted with our technical team.
Our SMD fuses are available in different wattage options, including 0.125W, 0.25W, 0.5W, 1W, and 2W, making them suitable for a wide range of power requirements. They are compatible with various surface mount technologies, including reflow and wave soldering, ensuring easy integration into any electronic design.
Whether you need a high-quality SMD fuse for your consumer electronics or industrial control systems, RFan has a solution that meets your needs. Contact us today to learn more about our SMD fuses and how we can help protect your electronic devices.
