The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Features:
Small size,
No current thermal effect,
Accurate temperature control,
Temperature sensitivity,
High compressive strength.
Detail Information
| Reset Temperature: | Less Than 85% Of Rated Temperature | Certifications: | UL, CSA, VDE, CQC |
| Product Type: | Electrical Components | Rated Voltage: | 250V AC |
| Response Time: | Less Than 5 Seconds | Rated Current: | 10A |
| Model: | TF Cutoff | Terminal Type: | Axial Lead |
| Insulation Resistance: | More Than 100M惟 | Dielectric Strength: | AC 1500V For 1 Minute |
| Highlight: | S01 Thermal Protector，Motor Thermal Cutoff Fuse，Resettable Thermal Protector | ||
Product Description

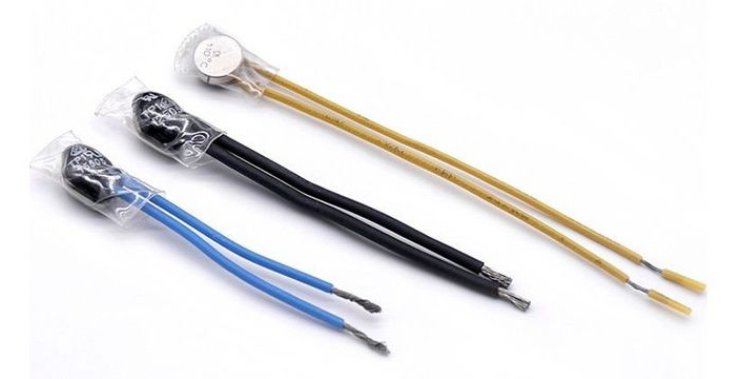

S01 Thermal Protector Thermal Safety Cutoff Thermal Resettable Fuse For Over-Temperature Protection Of Motor
Description:
S01 series thermal protector is used for over-temperature protection of motor. The Protector is embedded in the motor coil, and the bimetal plate acts laterally with the temperature change to push the transmission mechanism of the temperature control switch, the contact of the temperature control switch is opened or closed to cut off or close the circuit. The thermal protector is small in size, easy to install, sensitive in action and reliable in performance.

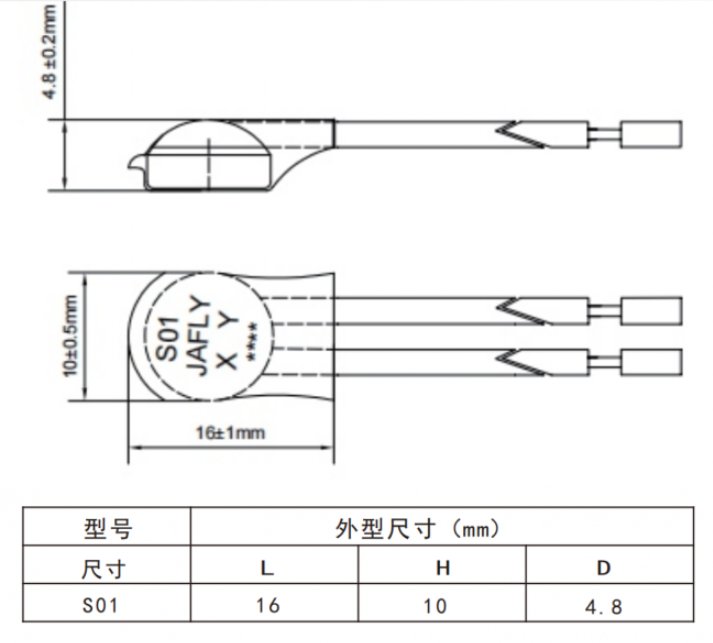

Dimension (Unit mm):
Main Technical Parameters:
Temperature range: 40 ° C--200 ° C, according to customer requirements can provide any temperature in its range.
Temperature Allowable Tolerance:±5℃
Electrical specifications:AC250V,5A/125V,8A,DC24V,10A/12V,10A
Closed resistor:≤50mΩ
Insulation Resistance:≥100MΩ
Life expectancy:10000
Warning:Thermal protectors can not withstand strong impact and pressure during installation and use.
Applications:
Sub-horsepower motors,
Transformers,
Coils,
Electronic products,
Sensors
