Features
·Lead-Free and RoHS compliant
·Inrush withstand capability
·Wide range of current rating
·Excellent environmental integrity
·Operating temperaturerange-55℃ to+125℃(consider de-rating)
Detail Information
| Voltage Rating: | 125V | Mounting Type: | Surface Mount |
| Design: | Solder-free | Mounting Style: | SMD |
| Breaking Capacity: | 100A | Automatic Reset Function: | None |
| Highlight: | Fast Acting Surface Mount Fuse, 72V DC Surface Mount Fuse, 72V DC SMD Chip Fuses | ||
Product Description

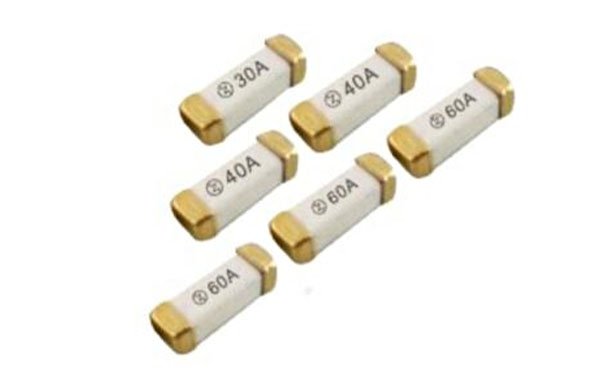

R1032.30A72V SMD Fuses DC Fast-Acting Surface Mount Fuse Chip Fuses
Description
R1032 Series fast-acting square Surface Mount fuses are ceramic tube/ end cap constructions,RoHS compliant,Halogen Free and lead-free, with U.S.(UL/CSA)safety agency approvals.Provide board level primary and secondary circuit protection in a wide variety of applications,end caps are available in copper or silver plated
Electrical Characteristics(UL/CSA,248-14)File No.E340427
| Amnere Rating | of current Rating | Blowing Time |
| 0.05A-15A/20A-40A | 100% | >4hours |
| 0.05A-15A/20A-40A | 200% | <60 sec |
Applications
·Office electronic equipment
·LED driver
·PC computer
·Notebook/Laptops
·Digital camera
·LCD/LED monitor/TV/backlight inverter
·Industrial equipment
·Networking device
·Telecom device
| Catalog Number | Ampere Rating(A) | Voltage Raling(V) | Interrupting Rating |
R1032.*** R1032E.*** R1032T.*** | 0.050 |
32V 63V 72V 100V 125V 250V 350V 400V |
1000A@32V 150A@63V/72V/100V/125V 50A@350V/400V |
| 0.062 | |||
| 0.080 | |||
| 0.100 | |||
| 0.125 | |||
| 0.200 | |||
| 0.250 | |||
| 0.300 | |||
| 0.375 | |||
| 0.400 | |||
| 0.500 | |||
| 0.600 | |||
| 0.630 | |||
| 0.700 | |||
| 0.750 | |||
| 0.800 | |||
| 1 | |||
| 1.25 | |||
| 1.5 | |||
| 2 |
| Catalog Number | Ampere Rating(A) | Voltage Rating(V) | Interrupting Rating |
R1032.*** R1032E.*** R1032T.*** | 2.5 |
32V 63V 72V 100V 125V 250V 350V 400V |
1000A@32V 150A@63V/72v/100V/125V 50A@350V/400V |
| 3 | |||
| 3.15 | |||
| 3.5 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 6.3 | |||
| 7 | |||
| 7.5 | |||
| 8 | |||
| 10 | |||
| 12 | |||
| 15 | |||
| 20 | |||
| 25 | |||
| 30 | |||
| 40 |
Dimension (Unit:mm)
Packaging
2,000 pcs per reel
