The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Characteristics
◎Fast response and high sensation
◎ High stability and reliability
◎ Superior electrical insulation
◎ High precision of resistance o Safty secure
◎ So small light and solid in structure as to be convenientfor auto mounting
Detail Information
| Cable: | UL4411# 24AWG | Feature: | Small Size, Strong Power |
| Resistance Value: | 2K-200K | Thermistor: | Power NTC Thermistor |
| Operating Temperature: | -40℃~125℃ | Length: | 5mm |
| Thermal Time: | 55/70/90sec | Ntc Thermistor: | MF74 25A NTC Negative Temperature |
| Transport Package: | Carton Packing | Type: | Chip NTC Thermistor |
| Highlight: | Negative Temperature Coefficient Thermistor MF55, Film Temp Measurement Coefficient Thermistor, MF55 Negative Coefficient Thermistor | ||
Product Description

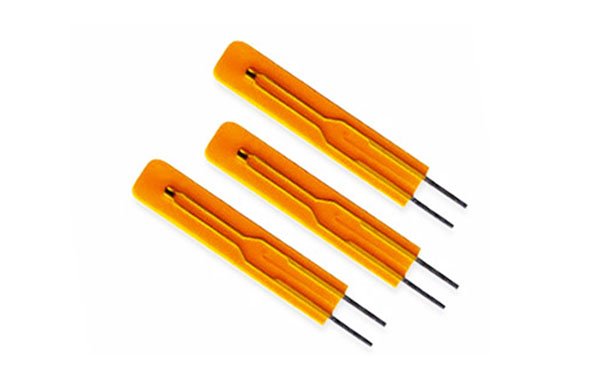

Negative Temperature Coefficient (NTC)Thermistor MF55 Film Temp Measurement NTC Thermistor Series
Negative temperature coefficient (NTC)thermistor
MF55 Film Temp measurement NTC Thermistor series
Applications
◎ Computer
◎ Printer
◎ House hold Appliance

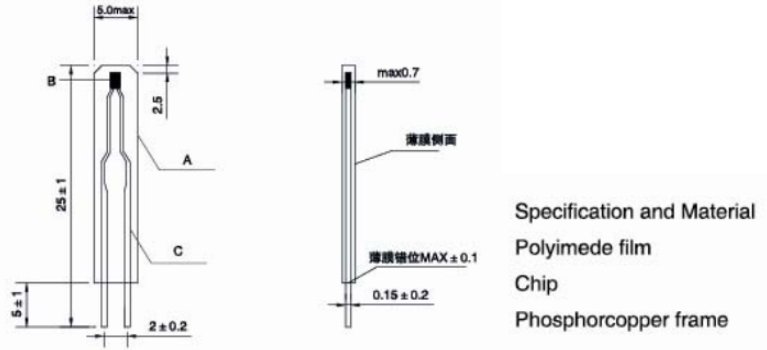

Dimensions(mm)
Main Techno-Parameter
◎ Rated zero power resistance (R25):5KΩ~500KΩ
◎ Allowance tolerance of R25:±1%,±2%,±3%,±5%
◎ Range of B value(B25/50℃):3270~4750K;
◎ Allowance tolerance of (Label by Requirment) B-value:±1%,±2%
◎ Dissipation coefficient:≥0.8mW/℃(In Still Air)
◎ Thermal time constant:≤5S(In Still Air)
◎ Operating temperature :-40~+125℃
◎ Rated Power:≤50mW
