Characteristics
◎ Small size lightweight
◎ Fast response to thermal,high delicacy
◎ High stability and reliability
◎ High precision of resistance,good qualityof coherence
Detail Information
| Cable: | UL4411# 24AWG | Feature: | Small Size, Strong Power |
| Resistance Value: | 2K-200K | Thermistor: | Power NTC Thermistor |
| Operating Temperature: | -40℃~125℃ | Length: | 5mm |
| Thermal Time: | 55/70/90sec | Ntc Thermistor: | MF74 25A NTC Negative Temperature |
| Transport Package: | Carton Packing | Type: | Chip NTC Thermistor |
| Highlight: | Negative Temperature Coefficient Thermistor MF51E, Thermometer Negative Temperature Coefficient Thermistor, MF51E Negative Temp Coefficient Thermistor | ||
Product Description
Negative temperature coeficient (NTC)thermistor
Negative Temperature Coefficient NTC Thermistor MF51E Temperature Measurement (Special For Electrical Thermometer)
Applications
◎ Electrical thermometer
◎ Medical equipment

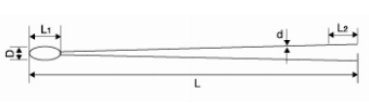

外 形 结 构 Dimension and constructure | 常 规 尺 寸 表 Norma slze table | ||||||
| 外形尺寸 Dimension | D max | Li max | L±3 | L | ±0.05 | Leaded along with thedire- ction,coated with insulation constnchn |
| 常规尺寸 Nomal size | 1.6 | 4.0 | 105 | 3 | 0.17 | ||
| 1.6 | 4.0 | 87 | 3 | 0.17 | |||
| 特殊尺寸 Specialsize | 用户确定 By user | 用户确定 By user | 用户确定 Byuser | 用户确定 By user | 用户确定 By user | ||
| 型 号 Part No | 标称阻值R25℃ Nominal resistance R25℃ | B值BValue(R25℃/50℃) | 耗散系数 Dissipation mw/o | 额定功率 Rated power mW | 热 时 间 常 数 Thermaltime onstant s | 工作温度 Operating ℃ | ||
| 阻值范围(KQ) Hange | 允许偏差(%)* Tolerance | 标称值(K) Normina value | 允许偏差(%) Tolerance | |||||
| MF51E□□3270 | 0.2-20 |
E+05 F±1 G±2 H±3 J±5 | 3270 |
E±0.5 F±1 |
≥0.7 |
3.5 |
≤2.8 |
-40-100℃ |
| MF51E□□3380 | 0.5-50 | 3380 | ||||||
| MF51E□□3470 | 0.5.60 | 3470 | ||||||
| MF51E□□3600 | 1-100 | 3600 | ||||||
| MF51E□□3950 | 5-100 | 3950 | ||||||
| MF51E□□4000 | 5-100 | 4000 | ||||||
| MF51E□□4050 | 5-200 | 4050 | ||||||
| MF51E□□4150 | 10~250 | 4150 | ||||||
| MF51E□□4300 | 20-1000 | 4300 | ||||||
| MF51E□□4500 | 20-1000 | 4500 | ||||||
Remarke Nominalrsistancefils with the fstvoume;alowabl toleranc code of Norminal resistancefils with the second olume;*allowabletoleranc can b indicated.
MF51E 503F395037℃(±0.01℃)Resistance calibration table at 37℃±0.01℃
| 档 位 group | 阻值Resistance(KQ) | 档 位 group | 阳值Reslstance(KQ) | 档 位 group | 阻值Resistance(KQ) | ||||||
| 最小值min | 中间值mid | 品大值max | 最小值min | 中间值mid | 大值ma0 | 最小值min | 中间值mid | 最大值max | |||
| 1 | 29.085 | 29.11 | 29.137 | 12 | 29.668 | 29.695 | 29.721 | 23 | 30.264 | 3029 | 30.318 |
| 2 | 29.138 | 29.164 | 29.189 | 13 | 29.722 | 29.749 | 29.775 | 24 | 30.319 | 30.346 | 30.373 |
| 3 | 29.190 | 29.216 | 29.242 | 14 | 29.776 | 29.802 | 29.828 | 25 | 30.374 | 30.401 | 30.428 |
| 4 | 29.243 | 29.269 | 29.294 | 15 | 29.829 | 29.856 | 29.883 | 26 | 30.429 | 30.456 | 30.483 |
| 5 | 29.295 | 29.322 | 29.348 | 16 | 29.884 | 29.910 | 29.936 | 27 | 30.484 | 30.511 | 30.638 |
| 6 | 29.349 | 29.375 | 29.400 | 17 | 29.937 | 29.964 | 29.991 | 28 | 30.539 | 30.566 | 30.593 |
| 7 | 29.401 | 29.428 | 29.454 | 18 | 29.992 | 30.019 | 30.045 | 29 | 30.594 | 30.622 | 30.649 |
| 8 | 29.455 | 29.481 | 29.507 | 19 | 30.046 | 30.073 | 30.100 | 30 | 30.650 | 30.677 | 30.703 |
| 9 | 29.508 | 29.535 | 29.561 | 20 | 30.101 | 30.128 | 30.154 | 31 | 30.704 | 30.731 | 30.758 |
| 10 | 29.56a | 29.588 | 29.61 | 21 | 30.156 | 30.182 | 30200 | 32 | 30.759 | 30.784 | 30.811 |
| 11 | 29.615 | 29.641 | 29.667 | 22 | 30.210 | 30.232 | 30.263 | ||||
Remarke The Abovevolume is Calibrated by 500,300 grade can be provided.
