The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Features:
Shell insulation, small size, easy to install;
The action is sensitive, will not produce the electric arc;
It is more suitable for the installation and welding of printed circuit board under the condition of reaction automation equipment, and it can save a lot of expensive labor cost;
Temperature is pre-set before the factory, for a single temperature range control;
Resistant to water, salt water, alcohol, ammonia, trichloroethene and most organic solvents.
Detail Information
| Reset Temperature: | Less Than 85% Of Rated Temperature | Certifications: | UL, CSA, VDE, CQC |
| Product Type: | Electrical Components | Rated Voltage: | 250V AC |
| Response Time: | Less Than 5 Seconds | Rated Current: | 10A |
| Model: | TF Cutoff | Terminal Type: | Axial Lead |
| Insulation Resistance: | More Than 100M | Dielectric Strength: | AC 1500V For 1 Minute |
| Highlight: | 15A Thermal Protector，KSD01F Thermal Protector，Resettable Thermal Cutoff Fuse | ||
Description:

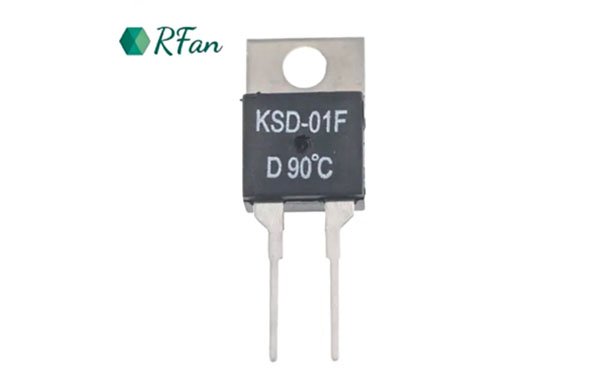

KSD01F thermal protector is a plastic-sealed thermostat with touch-sensitive temperature chart, shell insulation, stable working performance, long life, product movement, sensitive and reliable non-arcing, easy installation, less radio interference, etc. , widely used in circuit boards, switching power supplies, chargers, ballasts and other fields.

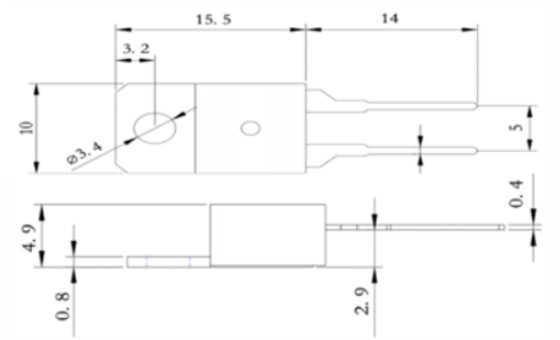

Dimension (Unit mm):
Electrical specifications:
2A/30V DC
2A/120V AC
1A/240V AC
Applications:
Printed circuit board,
Power Systems,
computers and computer peripherals,
aircraft automation and test instrumentation.
