OUR Products
The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Applications:
coffee machines,
microwave ovens,
air conditioners,
heating ventilation equipment,
heaters,
showers,
electric water bottles,
water dispensers,
heaters.
Detail Information
| Reset Temperature: | Less Than 85% Of Rated Temperature | Certifications: | UL, CSA, VDE, CQC |
| Product Type: | Electrical Components | Rated Voltage: | 250V AC |
| Response Time: | Less Than 5 Seconds | Rated Current: | 10A |
| Model: | TF Cutoff | Terminal Type: | Axial Lead |
| Insulation Resistance: | More Than 100M惟 | Dielectric Strength: | AC 1500V For 1 Minute |
| Highlight: | Thermostat Thermal Protector，KSD301 Thermal Protector，Electric Heater Thermal Protector | ||
Description:
KSD301 Jump thermostat is a bimetal plate after the temperature as a sensitive reaction element, when the temperature rises the heat generated to the bimetal plate, when the temperature reaches the rated action temperature of the product, the bimetal plate moves rapidly, disconnects the contact and cuts off the circuit. When the temperature drops to the rated reset temperature of the product, the bimetal sheet quickly recovers, and the power supply is switched on to cycle.

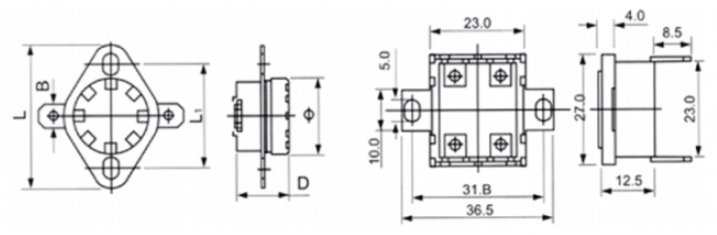

Dimension (Unit mm):
| ction temperature | Reset temperature | Action temperature | Reset temperature | Action temperature | Reset temperature | Action temperature | Reset temperature |
| 50±5℃ | 35±10℃ | 80±5℃ | 65±10℃ | 65±10℃ | 90±10℃ | 140±5℃ | 110±10℃ |
| 55±5℃ | 40±10℃ | 85±5℃ | 70±10℃ | 70±10℃ | 90±10℃ | 145±5℃ | 120±10℃ |
| 60±5℃ | 40±10℃ | 90±5℃ | 75±10℃ | 75±10℃ | 90±10℃ | 150±5℃ | 120±10℃ |
| 65±5℃ | 50±10℃ | 95±5℃ | 80±10℃ | 80±10℃ | 95±10℃ | 155±5℃ | 125±10℃ |
| 70±5℃ | 55±10℃ | 100±5℃ | 85±10℃ | 85±10℃ | 100±10℃ | 160±5℃ | 125±10℃ |
| 75±5℃ | 60±10℃ | 105±5℃ | 90±10℃ | 90±10℃ | 105±10℃ |
