E-Fuse MX6288T Low Loss Power Distribution Switch For USB Bus / Self-Powered Hubs



The MX6288T is a cost effective, single P-MOSFET load switch with ultra-low RDS(ON), optimized for self-powered and bus powered Universal Serial Bus applications.

Input voltage from 2.5V to 5.5V, making it ideal for both 3.3V and 5V systems. A built-in P-channel MOSFET with true shutdown function to eliminate any reversed current flow across the switch. When output voltage is higher than input voltage, power switch is turned off.

The MX6288T offers a programmable current limit threshold between 200mAto 2.4A via an external resistor.



Features

♦44mR Typical RDSON MOS is integrated ♦1μATypical at Switch Off state

♦Wide Input Voltage Range: 2.5V to 5.5V

♦Fast Transient Response: 8μs

♦0.1ms Typical Rise Time

♦Reverse Current Flow Blocking

♦Automatic Output Discharge at Shutdown ♦Thermal Shutdown Protection

♦Hot Pluggable ♦Adjusted Enable

♦Sot23-5 Package available



Applications

USB Bus / Self-powered Hubs

Safety Equipment

Battery Charger Circuits

Personal Communication Devices

Notebook Computers



Ordering information

Part NumberDescription
MX6288TSOT23-5 ,Halogen-free ,T&R



Absolute maximum ratings

ParameterValue
Input Voltage Range-0.3 to 7V
All other pins voltage range-0.3 to VIN+0.3V
Junction temperature TJ-40 to 150℃
Storage temperature TSTG-55 to 150℃
Leading temperature (soldering, 10secs)260℃
ESD Susceptibility HBM2000V



Over stress caution

Stresses beyond those listed in Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Functional operation of the device at any conditions beyond those indicated in the Recommended Operating Conditions section is not implied.

This integrated circuit can be damaged by ESD if you don’t pay attention to ESD protection. The MAXIN MICRO recommends that all integrated circuits be handled with appropriate precautions. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.



Recommended operating condition

SymbolParameterRange
VCCVCC supply voltage2.5-5.5V
PD_MAX@TA=25℃ SOT23-50.4W

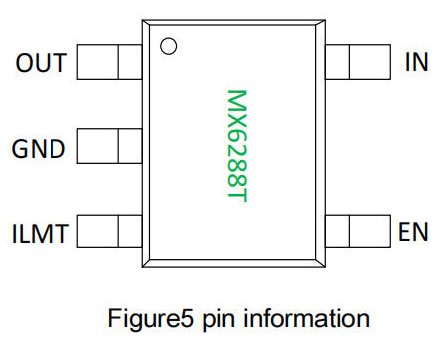

Terminal assigments



PIN namePIN No.Description
OUT1Switch Output Pin
GND2Ground Pin
ILIM3Current limit Set Pin
EN4High Enable. Not floating
IN5Power Input Pin



Electrical characteristics

( TA=25℃, VCC=5V ,CL=1uF, unless otherwise noted)

SymbolPARAMETERTEST CONDITIONSMINTYPMAXUNIT
SUPPLY CURRENT
VINInput Voltage
2.5
5.5V
IQQuiescent Supply CurrentVIN=5.0V, EN=L, No load
3060μA
ISHDNShutdown Input CurrentVIN=5.0V, EN=H, No load
0.11μA
IREVReverse Leakage CurrentVOUT=5.0V, VIN=0V
25μA
VUVLOUVLO ThresholdVIN rising
22.3V
VUVLO_HYUVLO HysteresisVIN falling
100
mV
EN/UVLO
VEN_LEN Rising ThresholdVIN=5.0V1.5

V
VEN_HEN Falling ThresholdVIN=5.0V

0.8V
IENEN Input CurrentVEN=5.0V or 0V-0.5510μA
OUTPUT
ILIMLimit CurrentRILIM=6.8kΩ0.811.2A
VREVERSEReverse Voltage ProtectionVOUT-VIN52050mV
TRISEOutput Rise TimeCL=1uF, RL=100ohm
0.1
ms
TFALLOutput Fall TimeCL=1uF, RL=100ohm
0.3
ms
TIOSShort Circuit Response time

12
μs
RDISOUT Discharge Resistance

10
Ω
Power Switch
RDS_ON
IOUT=1A
60
Thermal Shutdown
TOTPThermal Shutdown Threshold

150
TOTP_HYThermal Shutdown Hysteresis

20



Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the electrical characteristics if operated under different conditions.

1. eFuse is latched off until the EN/Fault pin is pulled low and then released or a power on reset is applied to the device.

2. Does not include fan out of EN/Fault function.

3. Pulse test: Pulse width 300 s, duty cycle 2%.

4. Verified by design.
