The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Features
1. Excellent thermal response due to small size
2. Suitable for countermeasure to short circuit test in safety standard.
3. Stable resistance after operation due to ceramic PTC.
4. Similar size is possible due to the large capacity for electric power.
5. Solid-state construction provides excellent mechanical vibration and impact resistance.
6. The SMD type's small size and light weight are helpful in miniaturizing the circuit.
Detail Information
| Installation Type: | Welding | Lead Length: | Customized |
| Lead Spacing: | 2.5MM | Dielectric Strength: | 500VAC |
| Mounting Type: | Through Hole, Surface Mount | Certifications: | UL, CSA, VDE, TUV |
| Flow Soldering: | Support | ||
| Highlight: | 0603-471 Ceramic Ptc Sensor，Overheating Protection PTC Sensor，Temperature Sensing PTC Sensor | ||
Product Description
0603-471 Chip Ceramic PTC Thermistor Overheating Protection Ceramic Resettable CPTC Thermistor For Temperature Sensing
Surface mount type Ceramic positive temperature coefficient thermistor for Temperature sensing applications
Applications
1. DC/DC converter
2. AC power adapter
3. Inverter inverter
4. Overheating protection for transistors and integrated circuits
5. LED

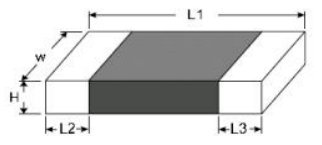

Structure and size
| NO | SIZE(EIA) | L1 | W | H max. | L2 and L3 |
| TPM0 | 0402 | 1.00±0.15 | 0.50±0.10 | 0.50±0.10 | 0.20±0.10 |
| TPM1 | 0603 | 1.60±0.15 | 0.80±0.15 | 0.80±0.15 | 0.40±0.20 |
TPM2 |
0805 |
2.00±0.20 |
1.25±0.20 | 1.00 max. |
0.45±0.25 |
1.45 (Only applicable to TPM2S150N130R) |
Electrical Characteristics
0603 Series
Part No. | 25℃Rated Resistance | Sensing temperature @ 1 KΩ | Max Voitage(V) | Operating temperature range |
| R25 | Ts1 | Vmax | TL~TU | |
| (Ω) | (℃) | (VDC) | (℃) | |
| TPM1S101N115R |
100 | 115±7 |
24 | -25 ~ +130 |
| TPM1S101N130R | 130±7 | -25 ~ +145 |
Part No. | 25℃Rated Resistance | Sensing temperature @ 2.2KΩ | Max Voitage(V) | Operating temperature range |
| R25 | Ts2 | Vmax | TL~TU | |
| (Ω) | (℃) | (VDC) | (℃) | |
| TPM1S221N090R |
220 | 90±7 |
24 | -25 ~ +105 |
| TPM1S221N105R | 105±7 | -25 ~ +120 |
Part No. | 25℃Rated Resistance | Sensing temperature 1 @ 4.7 KΩ | Sensing temperature 2 @ 47 KΩ | Max Voitage(V) | Operating temperature range |
| R25 | Ts1 | Ts2 | Vmax | TL~TU | |
| (Ω) | (℃) | (℃) | (VDC) | (℃) | |
| TPM1S471P065R |
470 | 65±5 | -- |
32 | -25 ~ +80 |
| TPM1S471P075R | 75±5 | -- | -25 ~ +90 | ||
| TPM1S471P080R | 80±5 | -- | -25 ~ +95 | ||
| TPM1S471P085R | 85±5 | -- | -25 ~ +100 |
Part No. | 25℃Rated Resistance | Sensing temperature 1 @ 4.7 KΩ | Sensing temperature 2 @ 47 KΩ | Max Voitage(V) | Operating temperature range |
| R25 | Ts1 | Ts2 | Vmax | TL~TU | |
| (Ω) | (℃) | (℃) | (VDC) | (℃) | |
| TPM1S471P095R |
470 | 95±5 | -- |
32 | -25 ~ +110 |
| TPM1S471P100R | 100±5 | -- | -25 ~ +115 | ||
| TPM1S471P105R | 105±5 | -- | -25 ~ +120 | ||
| TPM1S471P110R | 110±5 | -- | -25 ~ +125 | ||
| TPM1S471P115R | 115±5 | -- | -25 ~ +130 | ||
| TPM1S471P125R | 125±5 | -- | -25 ~ +140 | ||
| TPM1S471P135R | 135±5 | -- | -25 ~ +150 | ||
| TPM1S471P065RT |
470 | 65±5 | 80±7 |
32 | -25 ~ +90 |
| TPM1S471P075RT | 75±5 | 90±7 | -25 ~ +100 | ||
| TPM1S471P085RT | 85±5 | 100±7 | -25 ~ +110 | ||
| TPM1S471P095RT | 95±5 | 110±7 | -25 ~ +120 | ||
| TPM1S471P105RT | 105±5 | 120±7 | -25 ~ +130 | ||
| TPM1S471P115RT | 115±5 | 130±7 | -25 ~ +140 | ||
| TPM1S471P125RT | 125±5 | 140±7 | -25 ~ +150 | ||
| TPM1S471P130RT | 130±5 | 145±5 | -25 ~ +155 | ||
| TPM1S471P135RT | 135±5 | 150±7 | -25 ~ +160 |
Part No. | 25℃Rated Resistance | Sensing temperature @ 4.7MΩ | Max Voitage(V) | Operating temperature range |
| R25 | Ts2 | Vmax | TL~TU | |
| (KΩ) | (℃) | (VDC) | (℃) | |
| TPM1S102P095R |
1 | 95±5 | 32 | -25 ~ +110 |
| TPM1S102P105R | 105±5 | -25 ~ +120 | ||
| TPM1S102P115R | 115±5 | -25 ~ +130 |
Part No. | 25℃Rated Resistance | Sensing temperature @ 4.7MΩ | Max Voitage(V) | Operating temperature range |
| R25 | Ts | Vmax | TL~TU | |
| (KΩ) | (℃) | (VDC) | (℃) | |
| TPM1S103P075R |
10 | 75±5 |
32 | -25 ~ +90 |
| TPM1S103P080R | 80±5 | -25 ~ +95 | ||
| TPM1S103P110R | 110±5 | -25 ~ +125 | ||
| TPM1S103P120R | 120±5 | -25 ~ +135 | ||
| TPM1S103P130R | 130±5 | -25 ~ +145 | ||
| TPM1S473P130R | 47 | 130±5 | -25 ~ +145 |

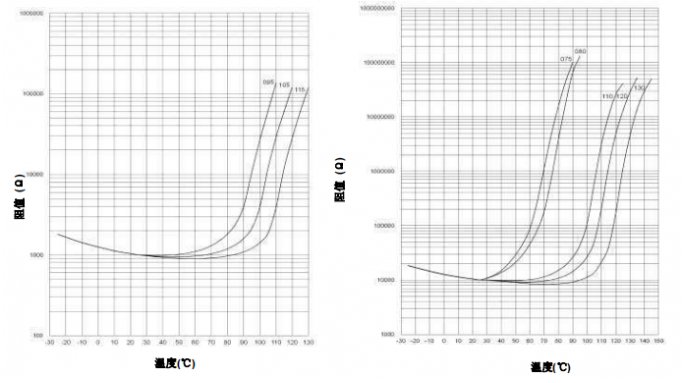

Resistance temperature characteristic curve (typical)
SMD0603 R25=1KΩ SMD 0603 R25=10KΩ
TPM1S102PXXXR TPM1S103PXXXR

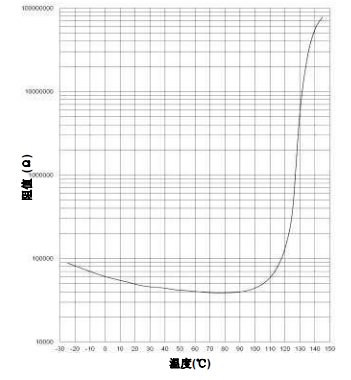

SMD 0603 R25=47KΩ
TPM1S473P130R

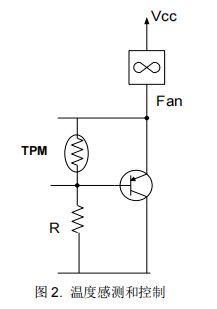

Typical Application Circuit
Packaging
| Size(EIA) | Quantity(Pcs/roll) |
| 0402 | 10,000 |
| 0603 | 4,000 |
| 0805 | 3,500 |
