The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Highlight: Surface Mount Varistor 0.1W, Surface Mount Varistor 0.4W, Round Patch SMD Surface
Product Description

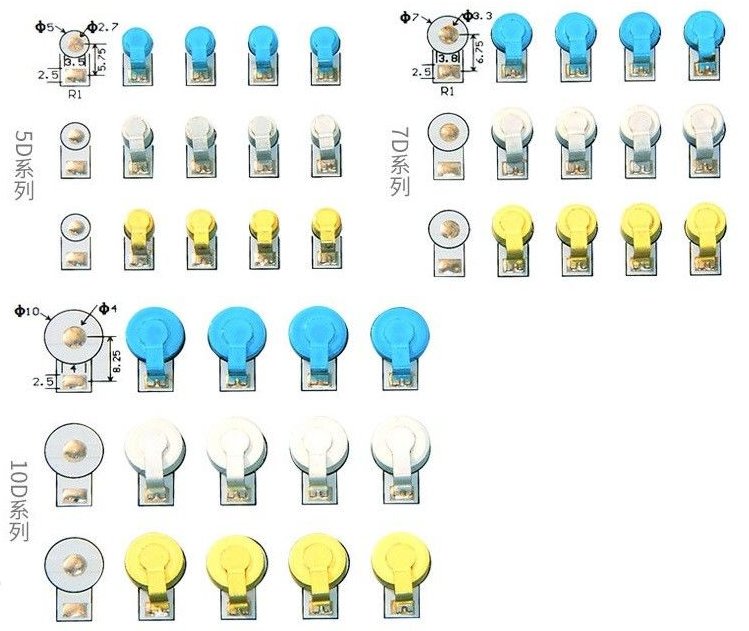

0.1W 0.25W 0.4W Small Size SMD Varistor Surface Mount Varistor Round Patch Varistors For Suppressing Current In LED
BLUE271:275VDC±10%
WHITE471:470VDC±10%
YELLOW511:510VDC±10%
RED561:560VDC±10%

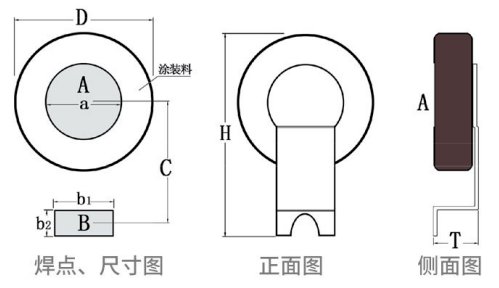

Product size:
| NO | PadA | PadB | Pad center distanceC | DiameterD | WidthH | ThicknessT | 备注 | |
| φa | b1 | b2 | ||||||
| 5D271 |
2.7 |
3.5 |
2.5 |
5.75 |
5.0 |
9.1 | 2.0 |
Blue 271 White 471 Yellow 511 Red 561 15-inch reel with tape closure 5D2714000PCS 7D2713000PCS 10D2712000PCS 5D-3000PCS 7D-2000PCS 10D-1500PCS
|
| 5D471 5D511 |
3.0 | |||||||
| 7D271 |
3.3 |
3.8 |
2.5 |
6.75 |
7.0 |
11.1 | 2.0 | |
| 7D471 7D511 7D561 |
3.0 | |||||||
| 10D271 |
4.0 |
4.0 |
2.5 |
8.25 |
10.0 |
14.2 | 2.0 | |
| 10D471 10D511 10D561 |
3.0 | |||||||
Electrical performance
NO |
Voltage-sensitive (VDC) | Max allowable return voltage | Max limiting voltage (8/20us) | Max flow energy | Max static power | Capacitance | Leakage current | Certified temperature ℃ | ||
| VAC | VDC | VDC | Alp | A | W | pF |
≤20uA |
-40~125 | ||
| 5D271 | 270±10% | 170 | 220 | 480 | 8A | 5A (1000V) | 0.1 | 100 | ||
| 5D471 | 470±10% | 300 | 380 | 810 | 10A | 5A (1000V) | 0.1 | 5 0. | ||
| 5D511 | 510±10% | 325 | 415 | 870 | 10A | 5A (1000V) | 0.1 | 60 | ||
| 7D271 | 270±10% | 170 | 220 | 450 | 15A | 1.0KA (2000V) | 0.25 | 170 | ||
| 7D471 | 470±10% | 300 | 380 | 770 | 20A | 1.0KA (2000V) | 0.25 | 115 | ||
| 7D511 | 510±10% | 325 | 415 | 840 | 20A | 1.0KA (2000V) | 0.25 | 110 | ||
| 7D561 | 560±10% | 350 | 450 | 925 | 20A | 1.0KA (2000V) | 0.25 | 100 | ||
| 10D271 | 270±10% | 170 | 220 | 450 | 35A | 2.0KA (4000V) | 0.4 | 380 | ||
| 10D471 | 470±10% | 300 | 380 | 760 | 40A | 2.0KA (4000V) | 0.4 | 250 | ||
| 10D511 | 510±10% | 325 | 415 | 835 | 40A | 2.0KA (4000V) | 0.4 | 230 | ||
| 10D561 | 560±10% | 350 | 450 | 920 | 40A | 4.0KA (2000V) | 0.4 | 210 | ||

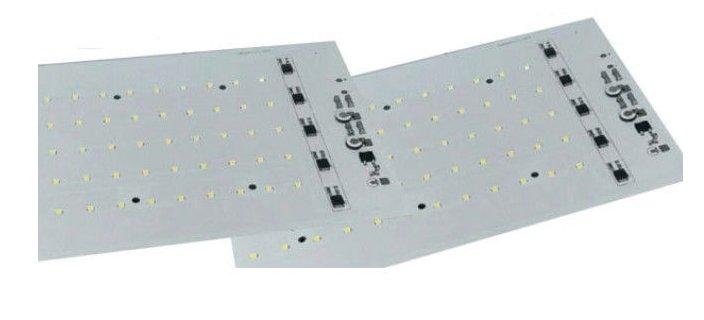

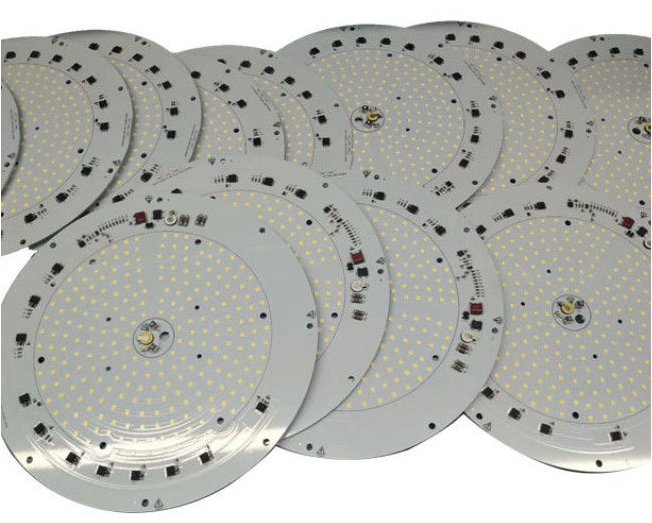

Application:
