3225K271 MOV Varistor ZOV Suface Mount SMD Varistor For Surge Suppressor

Product Description

Highlight: 3225K271 MOV Varistor, Surge Suppressor MOV Varistor, ZOV SMD Varistor

PRODUCT DETAILS

Product Description

Original 3225 SMD Varistor , 3225K271 Metal Oxide Varistor MOV ZOV Suface Mount SMD Varistor For Surge Suppressor

General Technical data

Parameter Name

Parameter value

Unit

Operating temperature

-40—+125

℃

Storage temperature

-40—+125

℃

Voltage Proof

≥2.5

KVRMS

Insulation Resistance

≥100

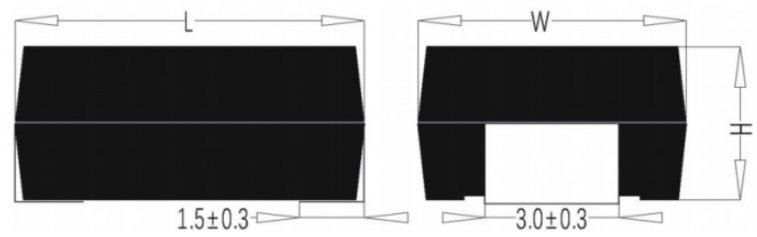

(Unit:mm)

Size Code	Varistor Voltage(V)	L	W	H
3225	V1mA=201—681	8.2±0.3	6.3±0.3	4.3±0.3
4032	V1mA=180—681	11.0±0.3	8.2±0.3	4.8±0.3
3225-M	V1mA=180—181	7.0±0.3	5.6±0.3	2.4±0.3

Specification details &Electrical Characteristics

Part No.

Varistor

Voltage

(@0.1Ma V)

Max.

Allowable Voltage

Max.

Clamping

Voltage

(8/20μs)

Max.

Impulse

Current

(8/20μs)

Max.fiow

Circulation

Energy

(40 Times)

Max

Energy

(10A000μs)

Rated Power

Typical

capacitance

Reference

@1KHZ

Vo.1mA (V)

VAC (V)

VDC (V)

Vc (V)

石王

I max (A)

(KV) (KA)

W max (J)

P (W)

C(pF)

3225K180

18(15-21.6)

100/250

0.4

0.01

1400

3225K220

22(19.5-26)

100/250

0.5

0.01

1150

3225K270

27(24-31)

100/250

0.6

0.01

930

3225K330

33(29.5-36.5)

100/250

0.8

0.01

760

3225K390

39(35-43)

100/250

0.9

0.01

640

3225K470

47(42-52)

104

100/250

1.1

0.01

530

3225K560

56(50-62)

123

100/250

1.3

0.01

450

3225K680

68(61-75)

145

100/250

1.6

0.01

370

3225K820

82(74-90)

150

400/800

2.5

0.1

300

3225K101

100(90-110)

175

400/800

3.0

0.1

250

3225K121

120(108-132)

110

210

400/800

4.0

0.1

210

3225K151

150(135-165)

125

260

400/800

4.8

0.1

165

3225K181

180(162-198)

115

150

320

400/800

5.9

0.1

140

Specification details &Electrical Characteristics

Part No.	Varistor Voltage (@0.1Ma V)	Max. Allowable Voltage		Max Clamping Voltage (8/20μs)		Max. Impulse Current (8/20μs)	Max.fiow Circulation Energy (40 Times)	Max. Energy (10/000μs)	Rated Power	Typical capacitance Reference @1KHZ
Part No.	Vo.1mA (V)	VAC (V)	VDC (V)	Vc (V)	()	I max (A)	(KV) (KA)	W max (J)	P (W)	C(pF)
3225K201	200(180-220)	130	170	340	10	1200/1750	2KV/1KA	11.0	0.25	200
3225K221	220(198-242)	140	180	360	10	1200/1750	2KV/1KA	12.0	0.25	180
3225K241	240(216-264)	150	200	395	10	1200/1750	2KV/1KA	13.0	0.25	170
3225K271	270(243-297)	175	225	455	10	1200/1750	2KV/1KA	15.0	0.25	150
3225K301	300(270-330)	195	250	500	10	1200/1750	2KV/1KA	17.0	0.25	150
3225K331	330(297-363)	210	275	550	10	1200/1750	2KV/1KA	18.0	0.25	150
3225K361	360(324-396)	230	300	595	10	1200/1750	2KV/1KA	20.0	0.25	115
3225K391	390(351-429)	250	320	650	10	1200/1750	2KV/1KA	21.0	0.25	105
3225K431	430(387-473)	275	350	710	10	1200/1750	2KV/1KA	23.0	0.25	95
3225K471	470(423-517)	300	385	775	10	1200/1750	2KV/1KA	25.0	0.25	90
3225K511	510(459-561)	320	410	845	10	1200/1750	2KV/1KA	25.0	0.25	85
3225K561	560(504-616)	350	450	930	10	1200/1750	2KV/1KA	26.0	0.25	80
3225K621	620(558-682)	395	510	1020	10	1200/1750	2KV/1KA	28.0	0.25	78
3225K681	680(612-748)	420	560	1120	10	1200/1750	2KV/1KA	30.0	0.25	75

Specification details &Electrical Characteristics

Part No.	Varistor Voltage (@0.1Ma V)	Max. Allowable Voltage		Max. Clamping Voltage (8/20μs)		Max. Impulse Current (8/20μs)	Max.fiow Circulation Energy (40 Times)	Max. Energy (10A000μs)	Rated Power	Typical capacitance Reference @1KHZ
Part No.	Vo.1mA (V)	VAC (V)	VDC (V)	Vc (V)	石三	I max (A)	(KV) (KA)	W max (J)	P (W)	C(pF)
4032K180	18(15-21.6)	11	14	40	2.5	250/500		0.9	0.02	1400
4032K220	22(19.5-26)	14	18	48	2.5	250/500		1.1	0.02	1150
4032K270	27(24-31)	17	22	60	2.5	250/500	--	1.4	0.02	930
4032K330	33(29.5-36.5)	20	26	73	2.5	250/500		1.7	0.02	760
4032K390	39(35-43)	25	31	80	2.5	250/500	--	2.1	0.02	640
4032K470	47 (42-52)	30	38	104	2.5	250/500	--	2.5	0.02	530
4032K560	56(50-62)	35	45	123	2.5	250/500		3.1	0.02	450
4032K680	68(61-75)	40	56	145	2.5	250/500		3.6	0.02	370
4032K820	82(74-90)	50	65	150	10	1200/1750		5.5	0.25	300
4032K101	100(90-110)	60	85	175	10	1200/1750		6.5	0.25	250
4032K121	120(108-132)	75	110	210	10	1200/1750	--	7.8	0.25	210
4032K151	150(135-165)	95	125	260	10	1200/1750	--	9.7	0.25	165
4032K181	180(162-198)	115	150	320	10	1200/1750		11.7	0.25	140
4032K201	200(180-220)	130	170	340	25	2500/3500	4KV/2KA	25.0	0.4	500

Specification details &Electrical Characteristics

Part No.	Varistor Voltage (@0.1Ma V)	Max. Allowable Voltage		Max. Clamping Voltage (8/20μs)		Max. Impulse Current (8/20us)	Max.fiow Circulation Energy (40 Times)	Max. Energy (10/000μs)	Rated Power	Typical capacitance Reference @1KHZ
Part No.	Vo.1mA (V)	VAC (V)	VDC (V)	Vc (V)	石王	I max (A)	(KV) (KA)	W max (J)	P (W)	C(pF)
4032K221	220(198-242)	140	180	360	25	2500/3500	4KV/2KA	27.0	0.4	450
4032K241	240(216-264)	150	200	395	25	2500/3500	4KV/2KA	30.0	0.4	420
4032K271	270(243-297)	175	225	455	25	2500/3500	4KV/2KA	35.0	0.4	370
4032K301	300(270-330)	195	250	500	25	2500/3500	4KV/2KA	40.0	0.4	330
4032K331	330(297-363)	210	275	550	25	2500/3500	4KV/2KA	42.0	0.4	300
4032K361	360(324-396)	230	300	595	25	2500/3500	4KV/2KA	45.0	0.4	280
4032K391	390(351-429)	250	320	650	25	2500/3500	4KV/2KA	50.0	0.4	260
4032K431	430(387-473)	275	350	710	25	2500/3500	4KV/2KA	55.0	0.4	230
4032K471	470(423-517)	300	385	775	25	2500/3500	4KV/2KA	60.0	0.4	210
4032K511	510(459-561)	320	410	845	25	2500/3500	4KV/2KA	67.0	0.4	200
4032K561	560(504-616)	350	450	930	25	2500/3500	4KV/2KA	69.0	0.4	180
4032K621	620(558-682)	395	510	1020	25	2500/3500	4KV/2KA	70.0	0.4	160
4032K681	680(612-748)	420	560	1120	25	2500/3500	4KV/2KA	72.0	0.4	150
