3225K391 Metal Oxide Varistor MOV ZOV Surface Mount SMD Varistor For Surge Suppressor

Product Description

Highlight: 3225K391 Metal Oxide Varistor, Surface Mount Metal Oxide Varistor, Surface Mount SMD Varistor

PRODUCT DETAILS

Product Description

3225K391 Metal Oxide Varistor MOV ZOV Suface Mount SMD Varistor For Surge Suppressor

General Technical data

Parameter Name

Parameter value

Unit

Operating temperature

-40—+125

℃

Storage temperature

-40—+125

℃

Voltage Proof

≥2.5

KVRMS

Insulation Resistance

≥100

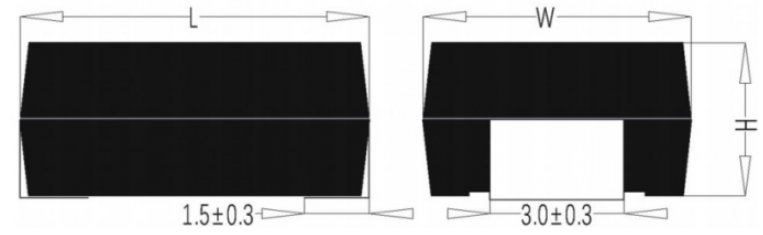

(Unit:mm)

Size Code	Varistor Voltage(V)	L	W	H
3225	V1mA=201—681	8.2±0.3	6.3±0.3	4.3±0.3
4032	V1mA=180—681	11.0±0.3	8.2±0.3	4.8±0.3
3225-M	V1mA=180—181	7.0±0.3	5.6±0.3	2.4±0.3

Specification details &Electrical Characteristics

Part No.

Varistor

Voltage

(@0.1Ma V)

Max.

Allowable Voltage

Max.

Clamping

Voltage

(8/20μs)

Max.

Impulse

Current

(8/20μs)

Max.fiow

Circulation

Energy

(40 Times)

Max

Energy

(10A000μs)

Rated Power

Typical

capacitance

Reference

@1KHZ

Vo.1mA (V)

VAC (V)

VDC (V)

Vc (V)

石王

I max (A)

(KV) (KA)

W max (J)

P (W)

C(pF)

3225K180

18(15-21.6)

100/250

0.4

0.01

1400

3225K220

22(19.5-26)

100/250

0.5

0.01

1150

3225K270

27(24-31)

100/250

0.6

0.01

930

3225K330

33(29.5-36.5)

100/250

0.8

0.01

760

3225K390

39(35-43)

100/250

0.9

0.01

640

3225K470

47(42-52)

104

100/250

1.1

0.01

530

3225K560

56(50-62)

123

100/250

1.3

0.01

450

3225K680

68(61-75)

145

100/250

1.6

0.01

370

3225K820

82(74-90)

150

400/800

2.5

0.1

300

3225K101

100(90-110)

175

400/800

3.0

0.1

250

3225K121

120(108-132)

110

210

400/800

4.0

0.1

210

3225K151

150(135-165)

125

260

400/800

4.8

0.1

165

3225K181

180(162-198)

115

150

320

400/800

5.9

0.1

140

Specification details &Electrical Characteristics

Part No.	Varistor Voltage (@0.1Ma V)	Max. Allowable Voltage		Max Clamping Voltage (8/20μs)		Max. Impulse Current (8/20μs)	Max.fiow Circulation Energy (40 Times)	Max. Energy (10/000μs)	Rated Power	Typical capacitance Reference @1KHZ
Part No.	Vo.1mA (V)	VAC (V)	VDC (V)	Vc (V)	()	I max (A)	(KV) (KA)	W max (J)	P (W)	C(pF)
3225K201	200(180-220)	130	170	340	10	1200/1750	2KV/1KA	11.0	0.25	200
3225K221	220(198-242)	140	180	360	10	1200/1750	2KV/1KA	12.0	0.25	180
3225K241	240(216-264)	150	200	395	10	1200/1750	2KV/1KA	13.0	0.25	170
3225K271	270(243-297)	175	225	455	10	1200/1750	2KV/1KA	15.0	0.25	150
3225K301	300(270-330)	195	250	500	10	1200/1750	2KV/1KA	17.0	0.25	150
3225K331	330(297-363)	210	275	550	10	1200/1750	2KV/1KA	18.0	0.25	150
3225K361	360(324-396)	230	300	595	10	1200/1750	2KV/1KA	20.0	0.25	115
3225K391	390(351-429)	250	320	650	10	1200/1750	2KV/1KA	21.0	0.25	105
3225K431	430(387-473)	275	350	710	10	1200/1750	2KV/1KA	23.0	0.25	95
3225K471	470(423-517)	300	385	775	10	1200/1750	2KV/1KA	25.0	0.25	90
3225K511	510(459-561)	320	410	845	10	1200/1750	2KV/1KA	25.0	0.25	85
3225K561	560(504-616)	350	450	930	10	1200/1750	2KV/1KA	26.0	0.25	80
3225K621	620(558-682)	395	510	1020	10	1200/1750	2KV/1KA	28.0	0.25	78
3225K681	680(612-748)	420	560	1120	10	1200/1750	2KV/1KA	30.0	0.25	75

Specification details &Electrical Characteristics

Part No.	Varistor Voltage (@0.1Ma V)	Max. Allowable Voltage		Max. Clamping Voltage (8/20μs)		Max. Impulse Current (8/20μs)	Max.fiow Circulation Energy (40 Times)	Max. Energy (10A000μs)	Rated Power	Typical capacitance Reference @1KHZ
Part No.	Vo.1mA (V)	VAC (V)	VDC (V)	Vc (V)	石三	I max (A)	(KV) (KA)	W max (J)	P (W)	C(pF)
4032K180	18(15-21.6)	11	14	40	2.5	250/500		0.9	0.02	1400
4032K220	22(19.5-26)	14	18	48	2.5	250/500		1.1	0.02	1150
4032K270	27(24-31)	17	22	60	2.5	250/500	--	1.4	0.02	930
4032K330	33(29.5-36.5)	20	26	73	2.5	250/500		1.7	0.02	760
4032K390	39(35-43)	25	31	80	2.5	250/500	--	2.1	0.02	640
4032K470	47 (42-52)	30	38	104	2.5	250/500	--	2.5	0.02	530
4032K560	56(50-62)	35	45	123	2.5	250/500		3.1	0.02	450
4032K680	68(61-75)	40	56	145	2.5	250/500		3.6	0.02	370
4032K820	82(74-90)	50	65	150	10	1200/1750		5.5	0.25	300
4032K101	100(90-110)	60	85	175	10	1200/1750		6.5	0.25	250
4032K121	120(108-132)	75	110	210	10	1200/1750	--	7.8	0.25	210
4032K151	150(135-165)	95	125	260	10	1200/1750	--	9.7	0.25	165
4032K181	180(162-198)	115	150	320	10	1200/1750		11.7	0.25	140
4032K201	200(180-220)	130	170	340	25	2500/3500	4KV/2KA	25.0	0.4	500

Specification details &Electrical Characteristics

Part No.	Varistor Voltage (@0.1Ma V)	Max. Allowable Voltage		Max. Clamping Voltage (8/20μs)		Max. Impulse Current (8/20us)	Max.fiow Circulation Energy (40 Times)	Max. Energy (10/000μs)	Rated Power	Typical capacitance Reference @1KHZ
Part No.	Vo.1mA (V)	VAC (V)	VDC (V)	Vc (V)	石王	I max (A)	(KV) (KA)	W max (J)	P (W)	C(pF)
4032K221	220(198-242)	140	180	360	25	2500/3500	4KV/2KA	27.0	0.4	450
4032K241	240(216-264)	150	200	395	25	2500/3500	4KV/2KA	30.0	0.4	420
4032K271	270(243-297)	175	225	455	25	2500/3500	4KV/2KA	35.0	0.4	370
4032K301	300(270-330)	195	250	500	25	2500/3500	4KV/2KA	40.0	0.4	330
4032K331	330(297-363)	210	275	550	25	2500/3500	4KV/2KA	42.0	0.4	300
4032K361	360(324-396)	230	300	595	25	2500/3500	4KV/2KA	45.0	0.4	280
4032K391	390(351-429)	250	320	650	25	2500/3500	4KV/2KA	50.0	0.4	260
4032K431	430(387-473)	275	350	710	25	2500/3500	4KV/2KA	55.0	0.4	230
4032K471	470(423-517)	300	385	775	25	2500/3500	4KV/2KA	60.0	0.4	210
4032K511	510(459-561)	320	410	845	25	2500/3500	4KV/2KA	67.0	0.4	200
4032K561	560(504-616)	350	450	930	25	2500/3500	4KV/2KA	69.0	0.4	180
4032K621	620(558-682)	395	510	1020	25	2500/3500	4KV/2KA	70.0	0.4	160
4032K681	680(612-748)	420	560	1120	25	2500/3500	4KV/2KA	72.0	0.4	150
