Specification
ANL Bakelite Auto Fuse
Model: Large stud fuse
Rated current : 40A to 500A
Rated voltage : 32V/48V/72V/125V
Material: Bakelite+Copper
Color: black
Certification: UL / UR / ROHS
Standard: DIN43560/1
| Lead Shape: | Axial | Ambient Temperature: | -40°C ~ +130°C |
| Lead Wire: | Tin Plated Copper | Base Temperature: | 125℃ |
| Certificates: | CUL,UL | Standards: | UL 248 -1 / -14 |
| Highlight: | Automotive Fuse 30A, Automotive Fuse 32V, Bolt Type Midi Fuse | ||
Product Description
AFD 30A-200A 32V Bolt-In ANS Mini Bolt-On Bolt Type Automobile Fuse Automotive Fuse Midi Fuse
Automobile Vehicle 32V 48V 80V 125V Car Automotive Auto Bolt-down ADL ANL Stud Mount Fuse

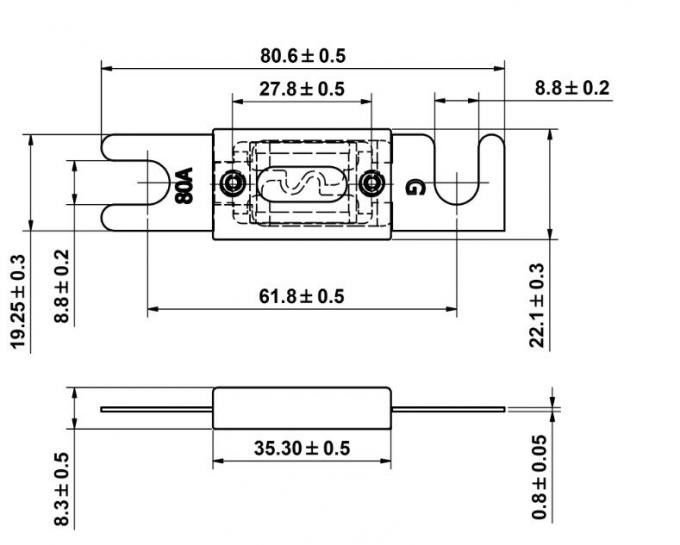

ANL Fuse
| Insulating body | Bakelite |
| Strip | Brass (40~80A)/Copper Alloy(100~400A) |
| Finishing | Gold -plated or Nickel -plated |
Electrical Characteristic
| % of Rated Amp | Clearing Time |
| 250% | Max 300 s |
| 100% | Min 4h |
| Rated Amp | Rated Voltage |
| 40 A | 32V |
| 50 A | |
| 60 A | |
| 80 A | |
| 100 A | |
| 125 A | |
| 130 A | |
| 150 A | |
| 175 A | |
| 180 A | |
| 200 A | |
| 225 A | |
| 250 A | |
| 275 A | |
| 300 A | |
| 400 A | |
| 500A |
Description
1. the fuses shown are for in motor vehicles, boats and trailers to protect not intended to restrict the design and use of other configurations and materials copable of meeting the vehicle requirements.
2. A fuse is a device designed to interrupt the electrical circuiut when subjected to overcents. This action is to be nonreversible and the fuse is intended to be replaced after the circuit, malfunction has been corrected.
