Specifications
Product name: Automotive MIDI AFD ANS Fuse

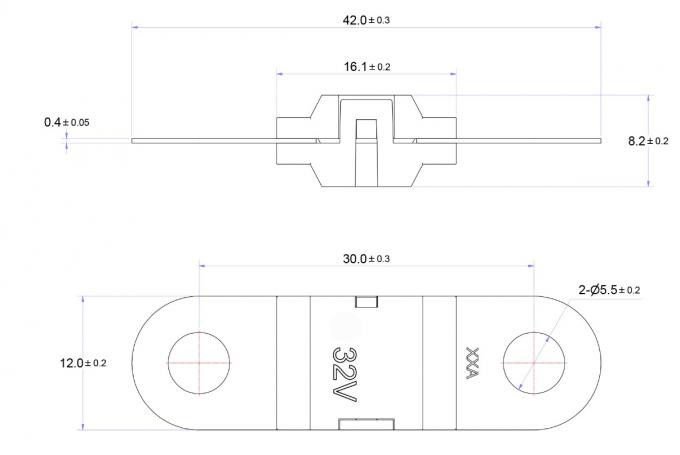

Product size: 42*8.5*12mm
Rated current: 30A-200A
Rated voltage: 32V DC
Safety certification: National standard
Mount Type: Stud mount
Product packaging: 1. Bulk packaging: 100PCS per plastic bag
Product advantages: (1) Small size, small space, easy to install and use
(2) Shell insulation, flame retardant
Lead Shape: | Axial | Ambient Temperature: | -40°C ~ +130°C |
Lead Wire: | Tin Plated Copper | Base Temperature: | 125℃ |
Certificates: | CUL,UL | Standards: | UL 248 -1 / -14 |
Highlight: | Automotive Bolt Type Fuse, 32V Bolt Type Fuse, ANS Midi Fuse | ||
Product Description
AFD 30A-200A 32V Bolt-In ANS Mini Bolt-On Bolt Type Automobile Fuse Automotive Fuse Midi Fuse
Notes
Interrupting Ratings: 1000Amp at 32V DC
Ambient temperature:-40~100 °C
Fuse Mounting: M5 Threaded Stud And Hex Nuts
Body: Thermoplastic
Fuse- link: Alloy material,Tin plated
Rated Current | Rated Voltage | Color | Voltage drop |
30A | 32V | Orange | 105mV |
40A | 32V | Green | 90mV |
50A | 32V | Red | 80mV |
60A | 32V | Yellow | 80mV |
70A | 32V | Brown | 80mV |
80A | 32V | Clear | 75mV |
100A | 32V | Blue | 75mV |
125A | 32V | Pink | 75mV |
150A | 32V | Gray | 70mV |
175A | 32V | Tan | 70mV |
200A | 32V | Violet | 70mV |
Electrical Characteristics
Test According to lSO 8820-5
% of Ampere Rating | Opening time |
75% (150~200A) | min 360000 sec |
100% (30~125A ) | min 360000 sec |
110% (30~125A) | min 14400 sec |
150%(30~125A) | 90~3600 sec |
200%(30~125A) | 3~100 sec |
200% (150~200A) | 1~15 sec |
300%(30~125A) | 0.3~3 sec |
350% (150~200A) | 0.3~5 sec |
500%(30~125A) | 0.1~1 sec |
600%(150~200A) | 0.1~1 sec |
