The company has established production bases in Shandong and Guangdong, where it conducts research and development and production of current and temperature protection devices.
Features
With strong compact structures,high
Insulation resistance and quickly heated
advantages can be quickly action.
When the products work under abnormal or
can't be reset,can soon cut off the power.
Detail Information
| Temperature Range: | 65~260°C | Application: | Household Appliances, Power Supplies, Industrial Equipment, Etc. |
| Maximum Temperature Limit: | 203℃ | Operating Temperature Range: | -40°C To 250°C |
| Certifications: | UL, CSA, VDE, TUV, CCC, Etc. | Applications: | Batteries,Automobile Electronic |
| Rated Voltage: | Up To 250V | ||
| Highlight: | Thermal Cut Off Fuse 250V，Aupo Thermal Fuse 10A，Heater Aupo Thermal Fuse | ||
Product Description

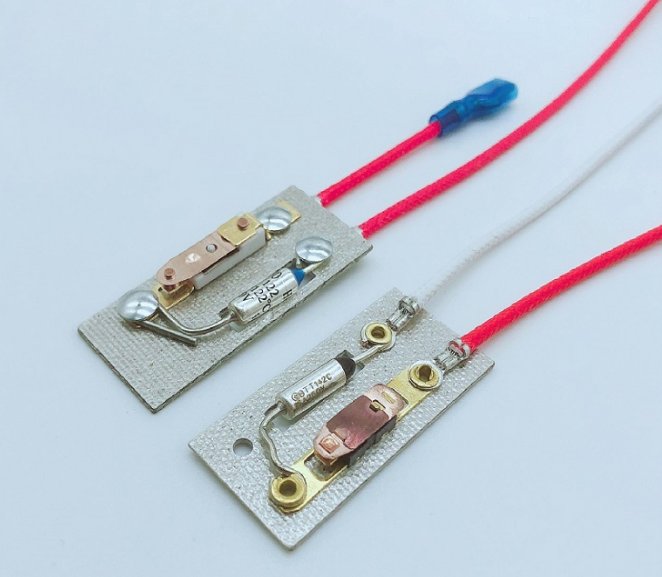

250V 10A 142°C Thermal Fuse Aupo Thermal Fuse Thermal Cut Off Fuse For Heater
STS-10A Series
Applications
Widely used in follow various field such as transformer,
exhaust fan,fan and small power motor charger,adopter,
secondary battery,household combined with gas water
heater lightings and various heater equipment

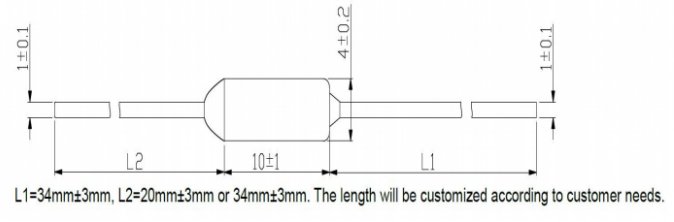

Dimension (unit:mm)
Electrical characteristics at 25°C
| No. | Part number | Tf | Operating temperature | Th | Tm | Ir | lp | Voltage | Approvals | |||||
| (C) | (℃) | (℃) | (℃) | (A) | (A) | (V) | UL | CCC | TUV | PSE | VDE | CB | ||
| 1 | STS073C | 73 | 71±2 | 43 | 130 | 10A | 150 | 250Vac | 0 | 0 | ● | O | O | O |
| 2 | STS077C | 77 | 74±2 | 47 | 130 | 10A | 150 | 250Vac | O | 0 | ● | O | 0 | |
| 3 | STS113C | 113 | 108±3 | 83 | 160 | 10A | 150 | 250Vac | 0 | 0 | ● | O | O | O |
| 4 | STS121C | 121 | 117±3 | 91 | 160 | 10A | 150 | 250Vac | O | 0 | ● | O | O | 0 |
| 5 | STS133C | 133 | 129±3 | 103 | 160 | 10A | 150 | 250Vac | O | O | ● | O | O | O |
| 6 | STS142C | 142 | 138±3 | 112 | 170 | 10A | 150 | 250Vac | O | O | ● | O | O | O |
| 7 | STS157C | 157 | 152±3 | 127 | 170 | 10A | 150 | 250Vac | O | O | ● | O | O | O |
| 8 | STS167C | 167 | 164±3 | 137 | 190 | 10A | 150 | 250Vac | O | O | ● | O | O | O |
| 9 | STS172C | 172 | 169±3 | 142 | 190 | 10A | 150 | 250Vac | O | O | ● | O | O | O |
| 10 | STS184C | 184 | 180±3 | 154 | 210 | 10A | 150 | 250Vac | O | O | ● | O | O | O |
| 11 | STS216C | 216 | 213±3 | 186 | 260 | 10A | 150 | 250Vac | O | O | ● | O | O | 0 |
●= Approved ○=Going on
Tf Functioning temperature,the standard tolerance:+0,-5℃
Th holding temperature:Maximum durative exposed exposed temperature.
Tm maximum temperature:The highest temperature at which the thermal link wont change the condition
