Electric motor burnout remains one of the most expensive failure modes in industrial equipment — and in most cases, it's preventable. The key lies in selecting the right thermal protector and calibrating it correctly for your motor's insulation class and operating conditions. This guide walks you through the critical engineering parameters that determine whether your thermal protector will actually protect — or fail when it matters most.
Before choosing a thermal protector, you need to nail down three electrical specifications:
1. Rated voltage and current — The protector must exceed your motor's maximum continuous current, not just the nominal rating. For a motor with a locked rotor current (LRA) of 15A, a 10A thermal protector will nuisance-trip repeatedly. Always overspec by 25-50%.
2. Trip temperature (T_OP) — This is where most engineers get it wrong. Your trip point must sit below the motor's insulation thermal limit but above the maximum normal operating temperature with a 5-15°C safety margin. Mapping by insulation class:
◦ Class B (130°C max) → Trip at 120-125°C
◦ Class F (155°C max) → Trip at 140-150°C
◦ Class H (180°C max) → Trip at 165-175°C

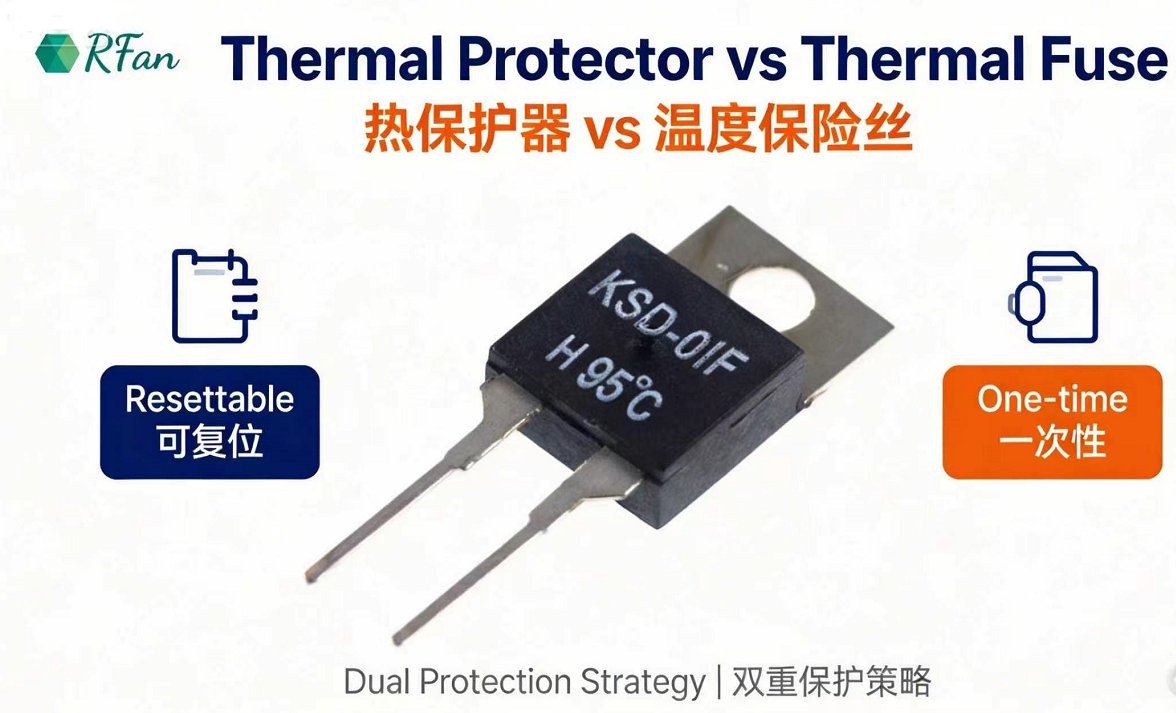

3. Form factor and mounting — Button-type protectors suit surface mounting on motor housings; rectangular models like KSD9700 fit embedded inside housings with lead wire access. The mounting position directly affects sensing accuracy — embedded winding installation provides the fastest response.
This isn't a cost decision — it's a safety engineering decision. Here's the framework:
• Automatic reset: The system restarts without human intervention after cooling. Ideal for unattended continuous systems like residential HVAC and light-duty pumps. The risk: if the fault persists, the system enters a thermal cycling loop that accelerates insulation degradation.
• Manual reset: Requires operator action to restart. Essential for safety-critical systems — industrial compressors, high-power motors, and any equipment where automatic restart under fault conditions creates a hazard.
The key question to ask: "Is automatic restart after cooling safe for this application?" If the answer is no, manual reset is mandatory.
• Selecting trip temperature based on ambient air temp instead of winding hotspot temp (thermal gradient can be 20°C+)
• Ignoring inrush current effects during motor startup
• Placing the protector too far from the heat source, introducing thermal lag
• Using a 125V-rated protector in a 250V circuit (arc-quenching capability is voltage-dependent)
RONGFAN manufactures thermal protectors covering 50°C to 180°C trip range, 2A to 25A ratings, with UL, TUV, and CQC certifications. Our engineering team provides motor thermal modeling and custom calibration support for OEM partners.
